301070204 Inter-Lock Switch
| Program No. | Menu Name | Judgment method | Remarks |
|---|---|---|---|

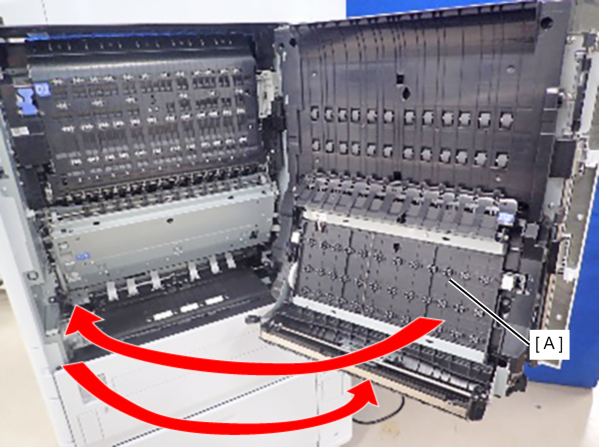

| 301070204 | Inter-Lock Switch | Open and close the Right Door Unit. | TRUE: Cover open detection |
- Check the sensor detection status by opening/closing the Right Door Unit (A).
