306020209 FIN Lower Tray Ejection Sensor

Program No. Menu Name Judgment method Remarks
306020209 FIN Lower Tray Ejection Sensor Pass the paper through and check. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Press the T4 lever to move it to the position shown below.

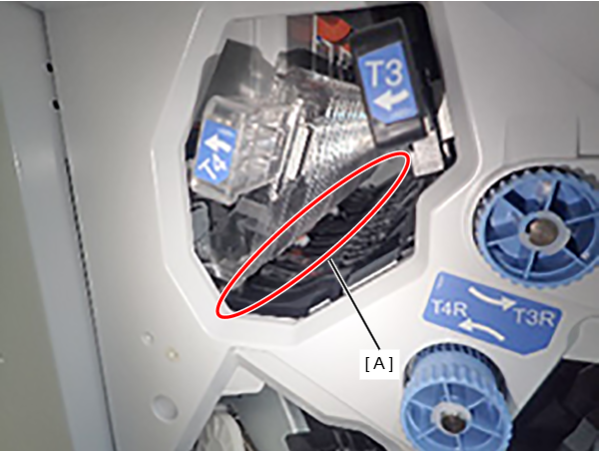

  2. Check the sensor detection status by inserting a sheet of paper in the portion (A) shown below.
