103 Counter Information
Displays the life counter of the periodic replacement parts.
 Note / 補足 |
In this menu, the life counter displays, and also the life counter can be reset as well. However, “Adjustment for Replacement Parts” has a menu in which necessary operations before and after replacement are packaged, and includes a counter reset. (05 Adjustment for Replacement Parts) |
Menu list
| Unit | No. | Menu Name | Remarks |
|---|---|---|---|
| Main Unit | 1030101 | C1 Pickup Roller | - |
| 1030102 | C2 Pickup Roller | - | |
| 1030105 | Paper Tray Pickup Roller | - | |
| 1030106 | Belt Unit (Motor) | - | |
| 1030107 | Belt unit (cleaner) |
- | |
| 1030108 | Cap Unit | - | |
| 1030109 | Maintenance Unit | - | |
| 1030110 | Ink Supply Unit | - | |
| 1030111 | Selector Unit | - | |
| 1030112 | Wiper Unit | - | |
| 1030113 | Ink Absorber Pad (BK) | - | |
| 1030114 | Ink Absorber Pad (Y) * | - | |
| 1030115 | Ink Absorber Pad (M) * | - | |
| 1030116 | Ink Absorber Pad (C) * | - | |
| Additional Cassette | 1030201 | C3 Pickup Roller | - |
| 1030202 | C4 Pickup Roller | - | |
| ADF/SCN | 1030301 | ADF Pickup Roller | - |
| High Capacity Unit | 1030401 | HC Pickup Roller | - |
*：Except for AM-M5500
- Start the service support mode.

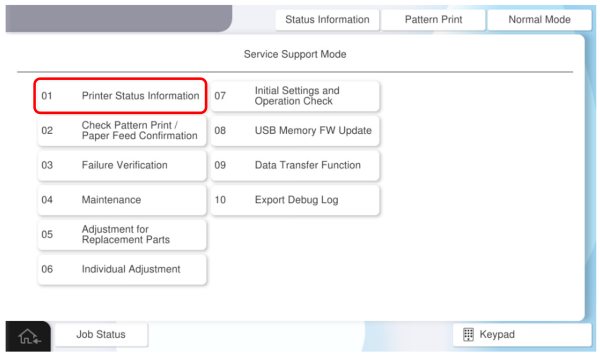

- Select [01 Printer Status Information].

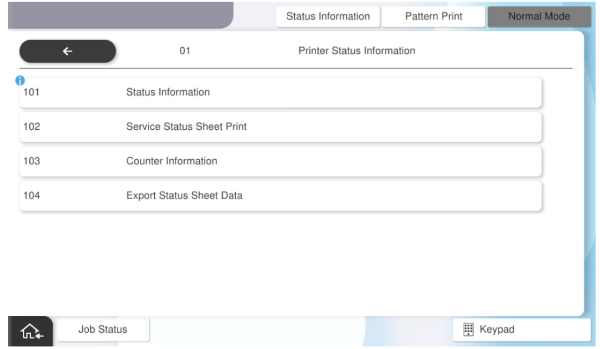

- Select [103 Counter Information].

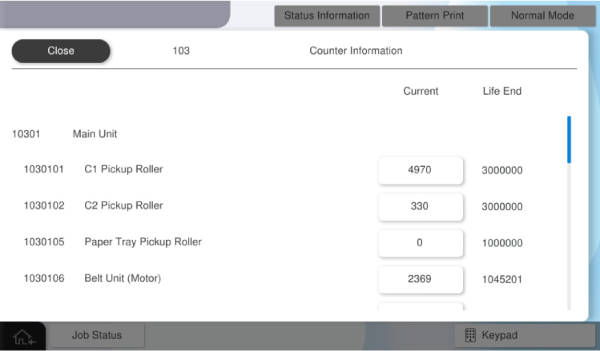

- Select the counter to check.
Note / 補足To reset the life counter is as follows.

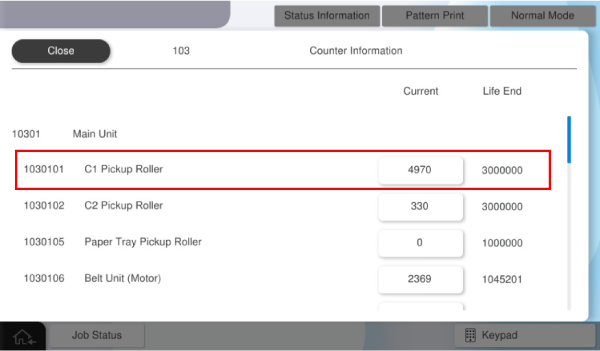

- Press the counter name to reset the counter.

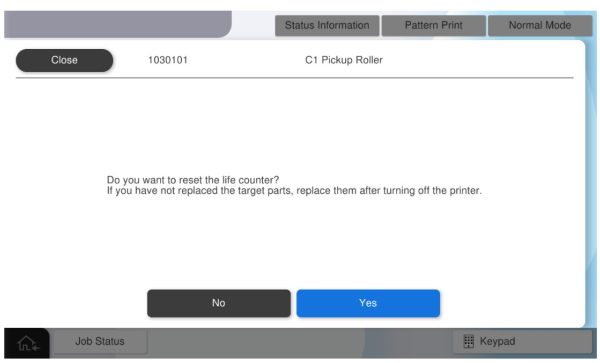

- Press [Yes] to reset the counter.
Pressing [No] returns to the previous screen.
- Pressing [Yes] resets the counter.
- Press the counter name to reset the counter.
