301060205 2nd Paper Eject Tray Full Stack Sensor

Program No. Menu Name Judgment method Remarks
301060205 2nd Paper Eject Tray Full Stack Sensor Shield the sensor from light with paper, etc. TRUE: No detection
FALSE: Detection
Default：TRUE
Caution / 注意

This menu should be executed with the Floor Bridge Unit B installed in the main unit.
(Have completed up to step 25 of the “Inner Tray Installation Procedure” in the “Installation” section.)

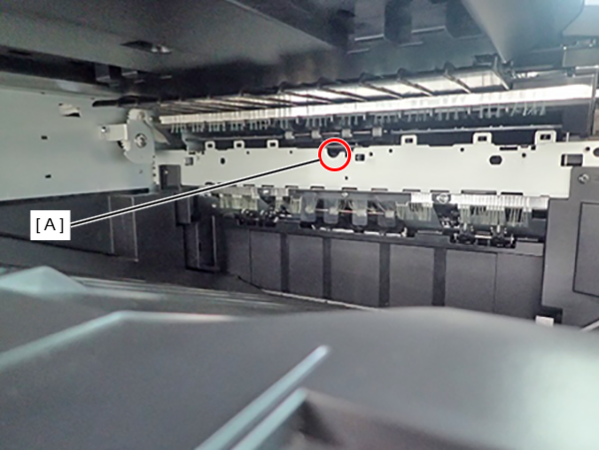

  1. Check the sensor detection status by holding a sheet of paper or your hand over the point (A) in the figure.
