SDL Processing Part Paper Detection Sensor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Refer to the following and remove the SDL Unit from the floor finisher.
    Saddle Unit Installation Procedure
    Caution / 注意
    • When disconnecting the Saddle Unit from the Floor Finisher Unit, the power of the Main Unit must be turned off.

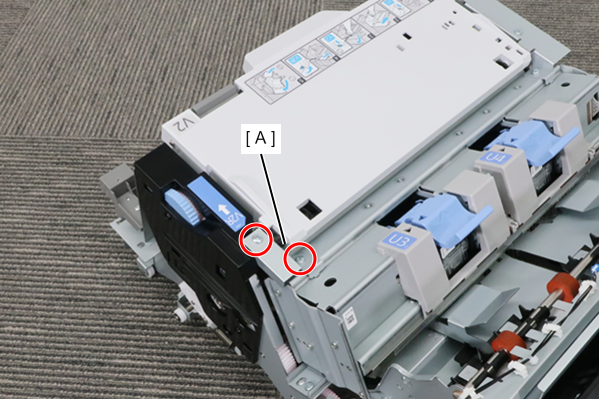

  3. Remove 2 screws and remove the Stapler Unit Attachment Plate Front (A).

    • : 4x8D

  4. Remove 2 screws and remove the Stapler Unit Attachment Plate Rear (A).


    • : 4x8D

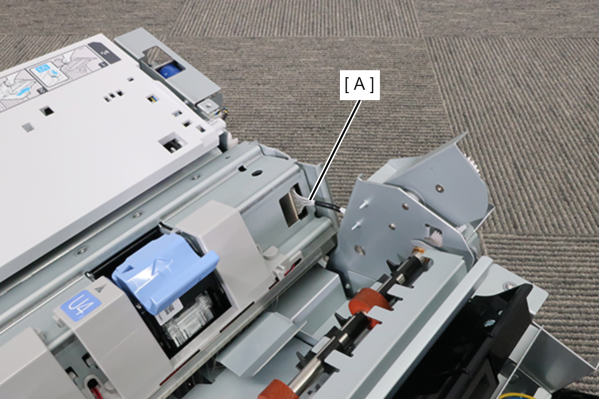

  5. Disconnect 2 cables from the Stapler Unit.

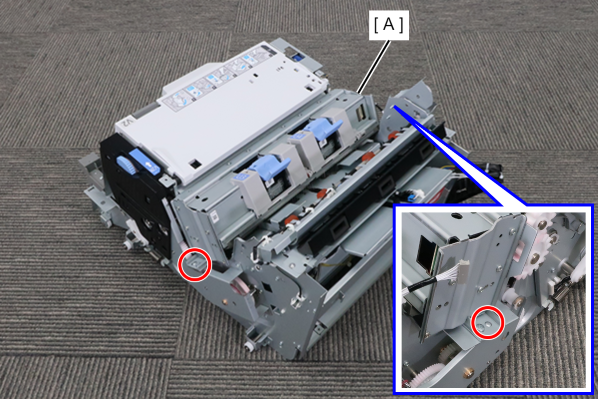

  6. Remove 2 screws and remove the Stapler Unit (A).

    • : 4x8D

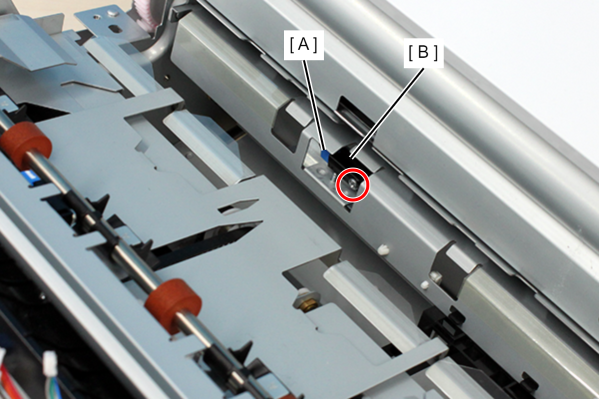

  7. Remove 1 screw, remove the cable from the connector (A), and remove the SDL Processing Part Paper Detection Sensor (B).


    • : 3x16D

    Check Point / チェックポイント

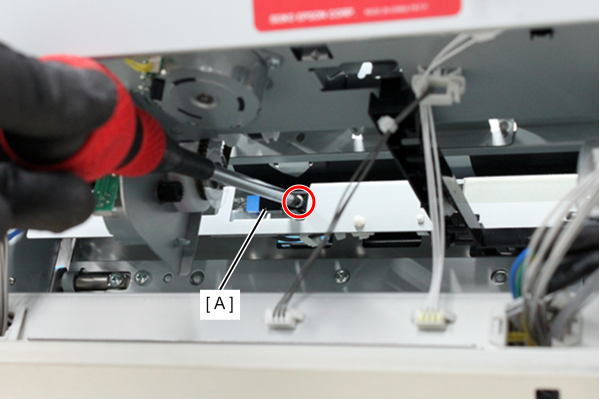

    Access the screw for secures the SDL Processing Part Paper Detection Sensor (A) from the position shown.
