Middle Processing Part-related (Inner) - After replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No. Menu Name
6050101 FIN Matching Width Adjustment
  1. Turn the power ON.

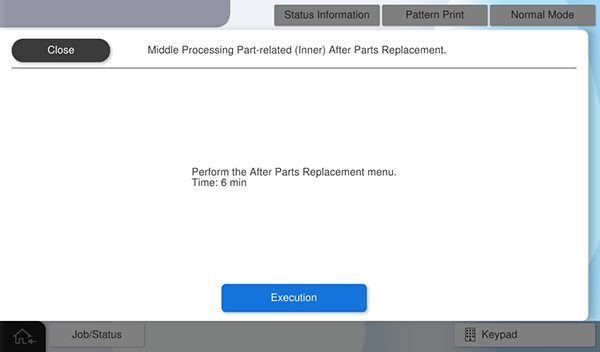

  2. Press [Execution].

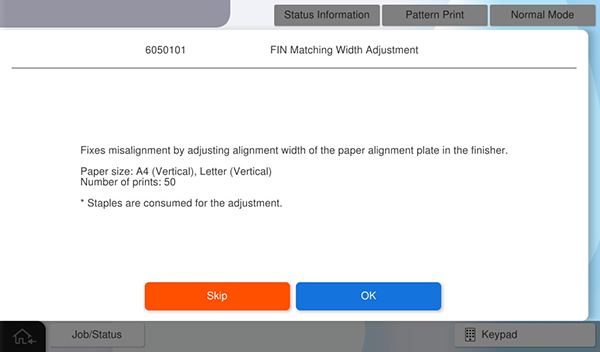

  3. Press [OK].
  4. Press [Pattern Print].

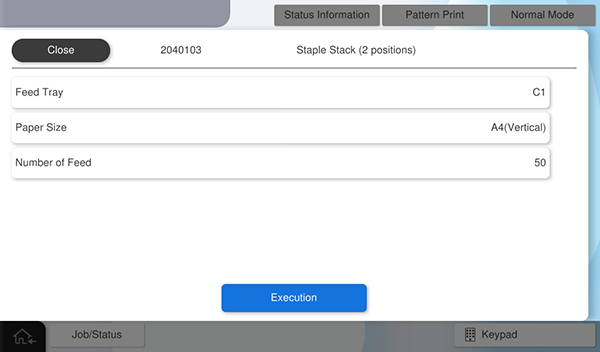

  5. Press each setting item button to make the print settings.


    The parameters that can be set are as follows.

    Setting Items Selection
    Feed Tray C1, C2, C3, C4, Paper Tray
    Available Paper Sizes A4 (Vertical), Letter (Vertical), A3, Ledger
    Number of Feed 50 (fixed)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution] to output the adjustment sample.
  7. Check the state of the paper edge of the adjustment sample, take the following actions according to the state of the adjustment sample, and calculate the adjustment value.
    • If the paper edge is damaged (the paper alignment cursor width is wider than the paper size)
      1. Check the paper edge of the adjustment sample, and measure the distance between the most receding part and the most protruding part.

      2. Convert the measurement results to adjustment values.

        Check Point / チェックポイント
        • Adjustment value calculation method: Adjustment value = measurement result × 10 × -1
          Example) If the measurement result is 1mm ⇒ Adjustment value = -10

    • If the paper edge is damaged (the paper alignment cursor width is narrower than the paper size)

      1. Any value from 1 to 36 is the adjustment value.

        Check Point / チェックポイント
        • It is not possible to measure how narrow the paper alignment cursor width is relative to the paper size. Therefore, the + sign adjustment value is input by trial and error.

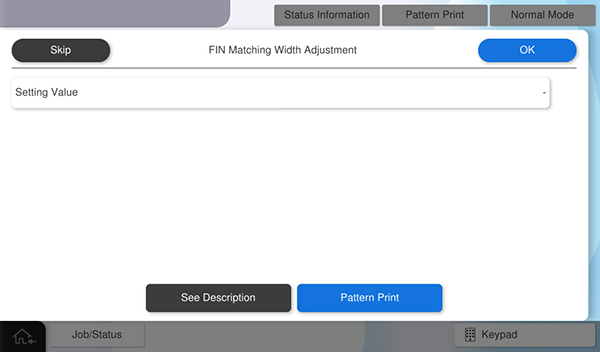

  8. Press [Input Value] and enter the adjustment value calculated by step 7.

    Check Point / チェックポイント

    Adjustment value input range: -36 to 36 * Values outside the adjustment value input range cannot be entered.

    • + adjustment value: The space between alignment cursors becomes narrower
    • - adjustment value: The space between alignment cursors becomes wider

  9. Press [Pattern Print] to apply the adjustment values and output an adjustment sample.

    Check Point / チェックポイント

    The adjustment values are reflected by pressing the [Pattern Print] button. Note that pressing [OK] will also reflect the adjustment value, but it will transition to the menu screen one level earlier.
  10. Check the adjustment sample, and if the phenomenon is improved, press [Skip] to finish the adjustment
    To continue adjusting, repeat from step 8.
