301060202 2nd Paper Eject Tray Pre-Eject Sensor

Program No. Menu Name Judgment method Remarks
301060202 2nd Paper Eject Tray Pre-Eject Sensor Insert the paper into the sensor parts.

TRUE: No detection
FALSE: Detection
Default：TRUE

Detectable when the inner tray is attached
  1. Open the right door unit (A).

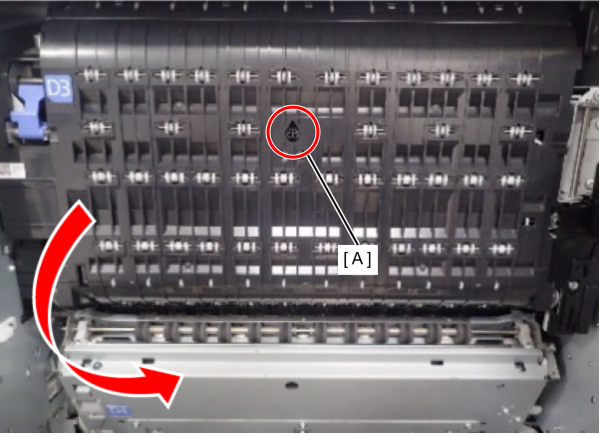

  2. Open the D3 unit (A).
  3. Check the sensor detection status by inserting/removing a sheet of paper in/from the portion (A) in the figure.
