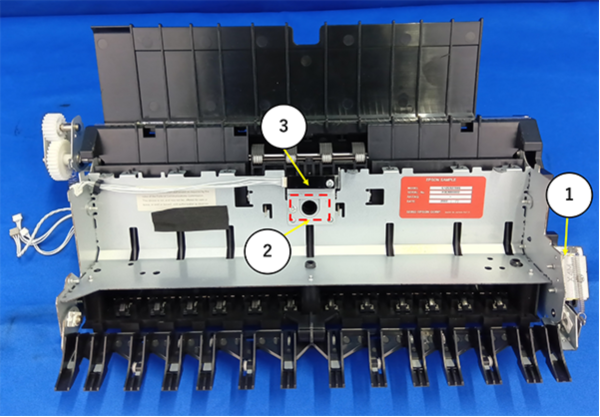

Floor Bridge Unit B
Solenoid
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | Paper Eject Path Switching Solenoid | Used for switching the paper ejection path. |
- | (Floor Bridge Unit B) |
Sensor
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 2 | 2nd Paper Eject Tray Pre-Eject Sensor | Used for paper jam remaining detection for the paper path. | Reflective photo interrupter | (Floor Bridge Unit B) |
| 3 | 2nd Paper Eject Tray Full Detection Sensor | Used to detect that the inner tray is full. |
