C3 Paper Size Detection Sensor Assy

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.

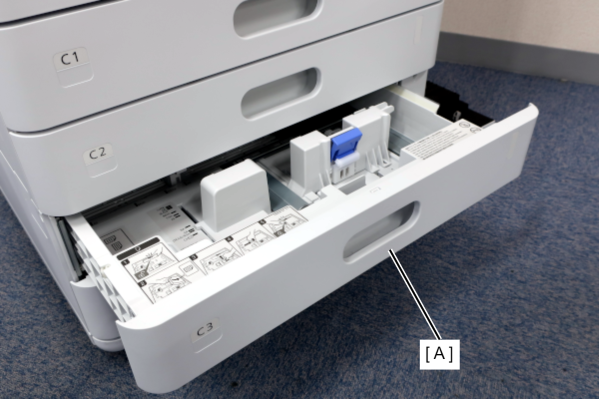

  4. Pull out the C3 cassette (A). (about 10 cm)

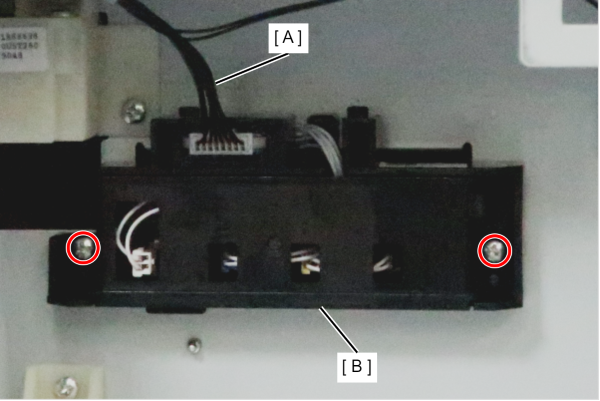

  5. Disconnect the cable (A) from the connector.
  6. Remove the 2 screws and remove the C3 Paper Size Detection Sensor Assy (B).
    • : 3x8D/P

    • : 3x10DW/P
