C4 Pulling Unit

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.
  4. Pull out the C4 cassette (A). (about 10 cm)

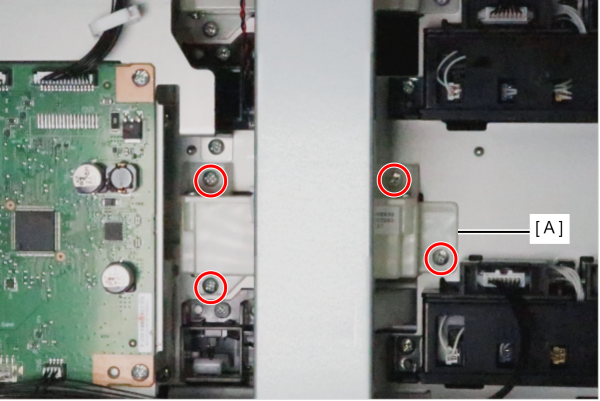

  5. Remove 4 screws, and remove the C4 Pulling Unit (A).

    • : 3x8D/P

    • : 3x10DW/P
