20104 Black 25% Pattern

Program No.

Pattern Name

Specifications

Pattern Image
(The arrow indicates the paper feed direction)

Target image quality defect

20104

Black 25% Pattern

  • Pattern outline: Black (Duty 25%) uniform pattern

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 3

  • Diagonal Unevenness

  • Failure in fixing ink

  • White or dark banding
  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [20104 Black 25% Pattern].

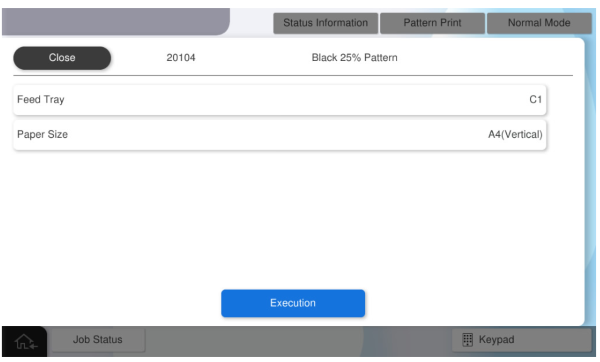

  5. Press each setting item button to make the print settings.


    The selectable items are as follows.

    Setting Items Selection
    Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
    Available Paper Sizes A4 (Vertical), Letter (Vertical)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution].
