Paper Path, Right Door, Upper
- Pull the lever to open the Right Door Unit (A).

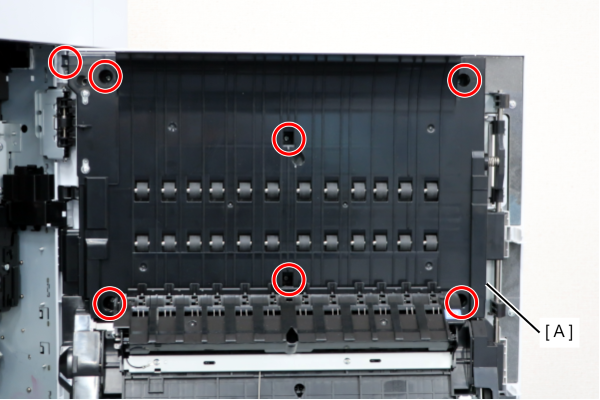

- Remove 7 screws and remove the Paper Path Right Door Upper (A).
: 3x8D/P
