Inclination Sensor - Before replacement (Only for AM-C6000/C5000/C4000)

  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [Main Unit] tab.

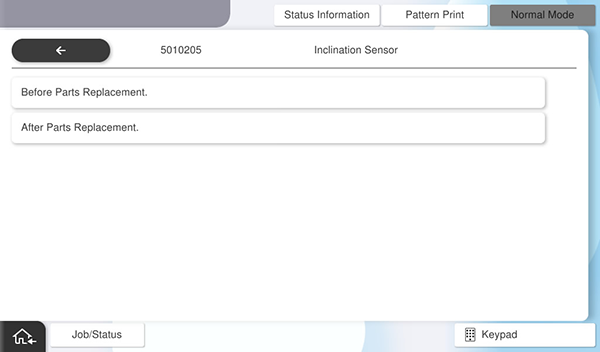

  4. Select [5010205 Inclination Sensor].

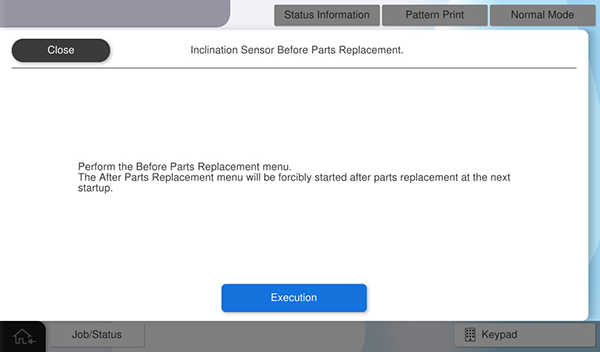

  5. Select [Before Parts Replacement].
  6. Press [Execution].

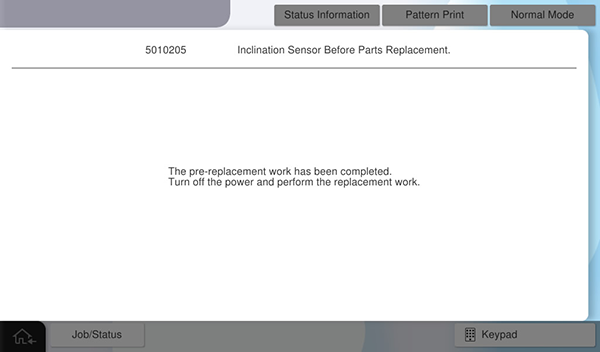

  7. Turn Off the main unit when the following screen is displayed.


    After replacement menu will start automatically at next startup.
