307010201 IN FIN Paper Transport Sensor

Program No. Menu Name Judgment method Remarks
307010201 IN FIN Paper Transport Sensor Check by passing the paper through the paper feed path.

TRUE: Detection
FALSE: No Detection
Default: FALSE

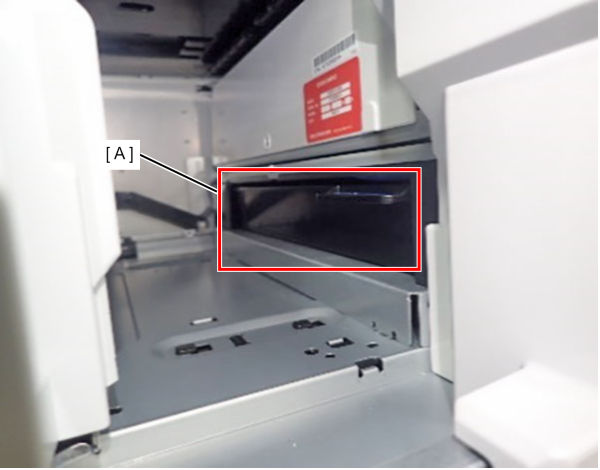

  1. Slide the N1 (A) of the Inner Finisher in the direction of the arrow and pull it out.
  2. Insert/remove a sheet of paper in/from the portion (A) to see if the sensor detects paper.
