Paper Path, Right Door, Middle

  1. Pull the lever to open the Right Door Unit (A).
  2. Remove 1 screw and remove the Right Door Fulcrum Lever (A).

    • : 3x6DW/P
  3. Remove 2 E-rings (A).

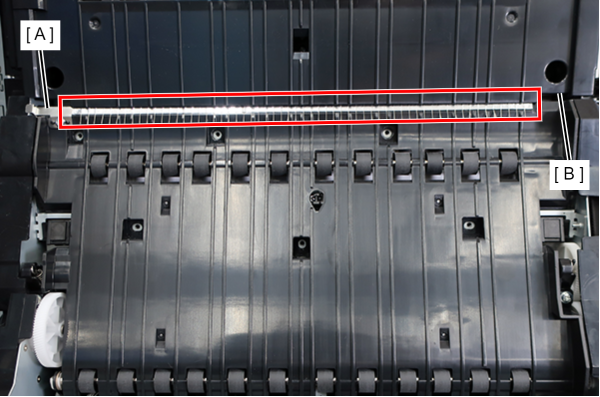

  4. Remove the Paper Path, Right Door, Outside (A) shaft (B) from the hole and remove in the direction of the arrow.

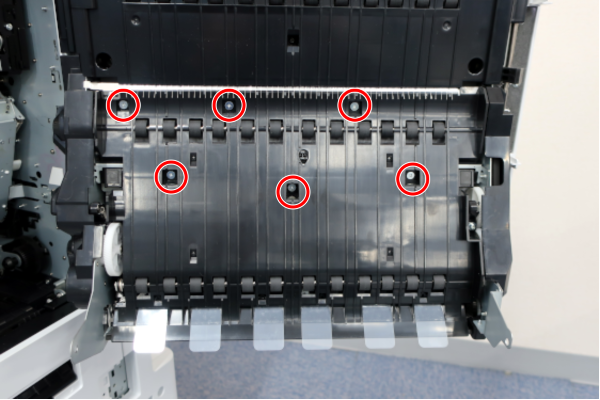

  5. Remove 6 screws and remove the Paper Path, Right Door, Middle (A).


    • :3x5D/TBD
    Assembly / 組み立て

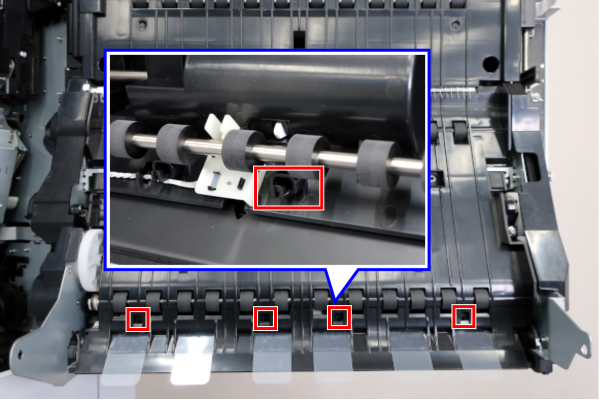

    • Attach the Paper Path, Right Door, Middle (A) under the cover (B).

    • Attach by hooking the 4 holes.
