ADF CISM FFC (Power Supply)

  1. Open the ADF (A).

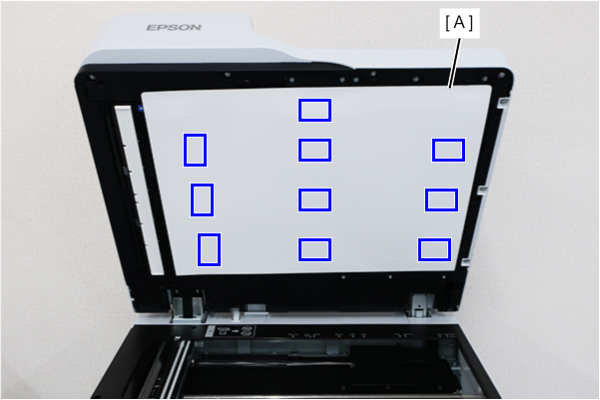

  2. Remove the 10 hook and loop fasteners, and remove the Document Mat Assy (A).

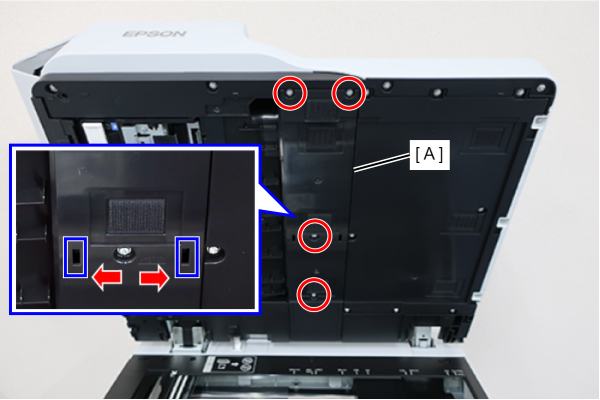

  3. Remove 4 screws.
  4. Release the 2 hooks in the direction of the arrows and remove the ADF Lower Cover (A).

    • : 3x10TW/P
  5. Remove the 6 screws that secure the ADF rear cover (A), and release the 4 hooks.

    • : 3x10DW

  6. Release the two hooks while pressing the position shown in the figure in the direction of the arrow, and remove the ADF rear cover (A).

    Assembly / 組み立て

    Attach the ADF rear cover (A) by inserting the two tabs into the holes.
  7. Open the ADF cover (B) while pulling the lever (A).

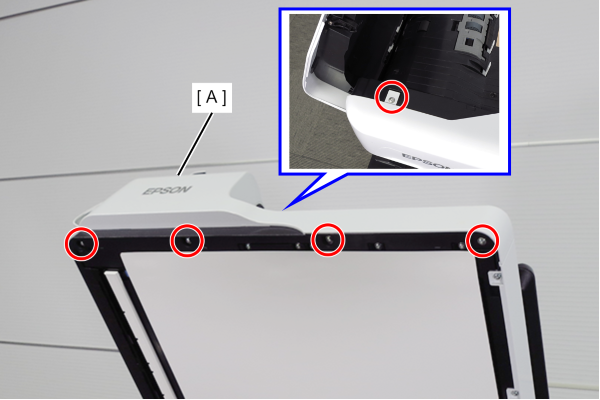

  8. Remove the 5 screws and remove the ADF front cover (A).

    • : 3x10DW

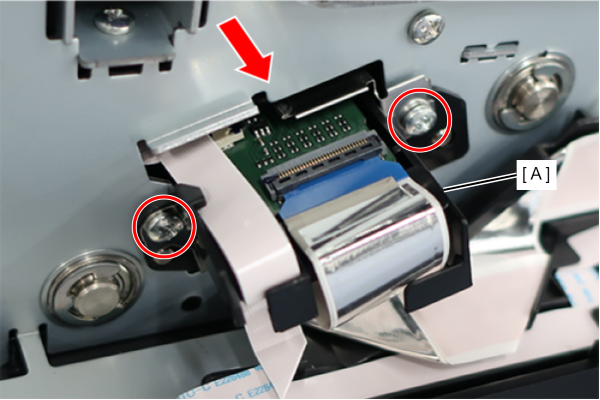

  9. Remove the 2 screws and pull out the ADF CIS Module (A) in the direction of the arrow.

    • : 3x6D/P

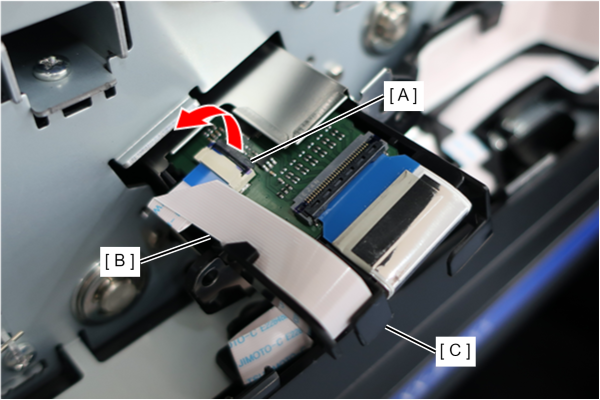

  10. Release the connector lock (A) and remove the ADF CISM FFC (Power Supply) (B) from the connector.
  11. Remove the ADF CISM FFC (Power Supply) (B) from the guide (C).

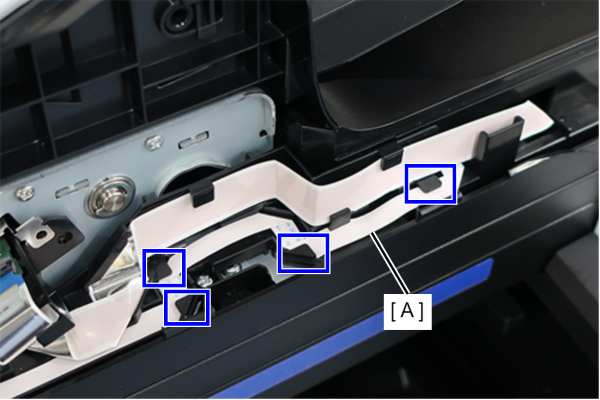

  12. Remove the ADF CISM FFC (Power Supply) (A) from the 4 hooks.
  13. Remove the ADF CISM FFC (Power Supply) (A) from the connector.

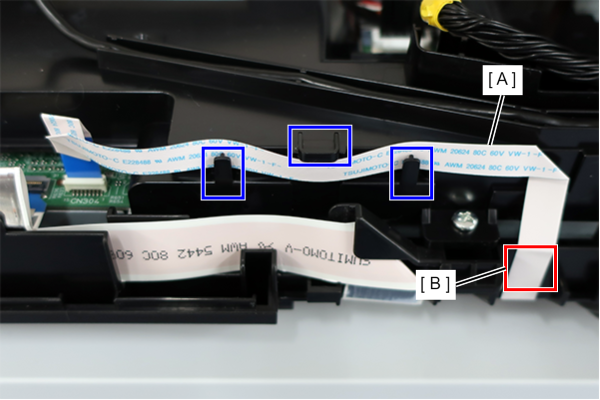

  14. Remove the ADF CISM FFC (Power Supply) (A) from the 3 hooks and remove the double-sided tape (B).

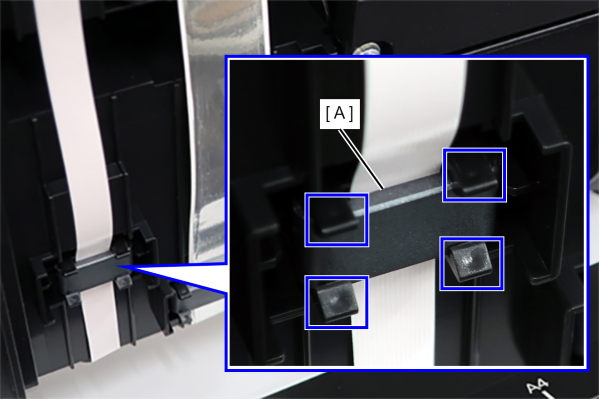

  15. Release the 4 hooks and remove the ferrite core (A).

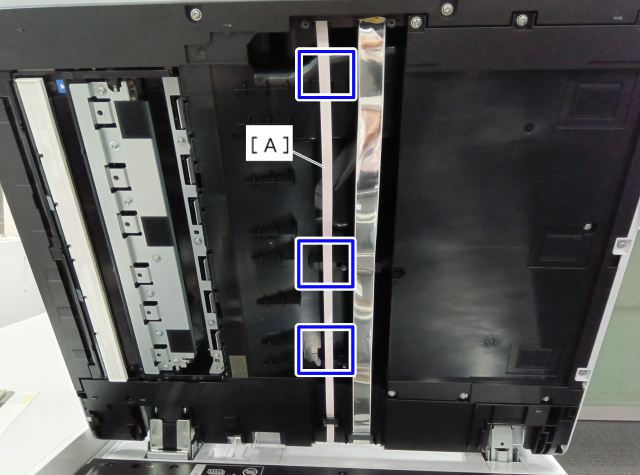

  16. Remove the 3 double-sided tapes and remove the ADF CISM FFC (Power Supply) (A).
