2011302 Black 25% Pattern (Deactivate nozzle adjustment)

Program No.

Pattern Name

Specifications

Pattern Image (the arrow indicates the paper feed direction)

Target image quality defect

2011202

Black 25% Pattern  (Deactivate nozzle adjustment)

  • Pattern outline: outputs the “20104 Black 25% Pattern” with the nozzle self-diagnosis system function OFF.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 3

  • nozzle clogging
  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.

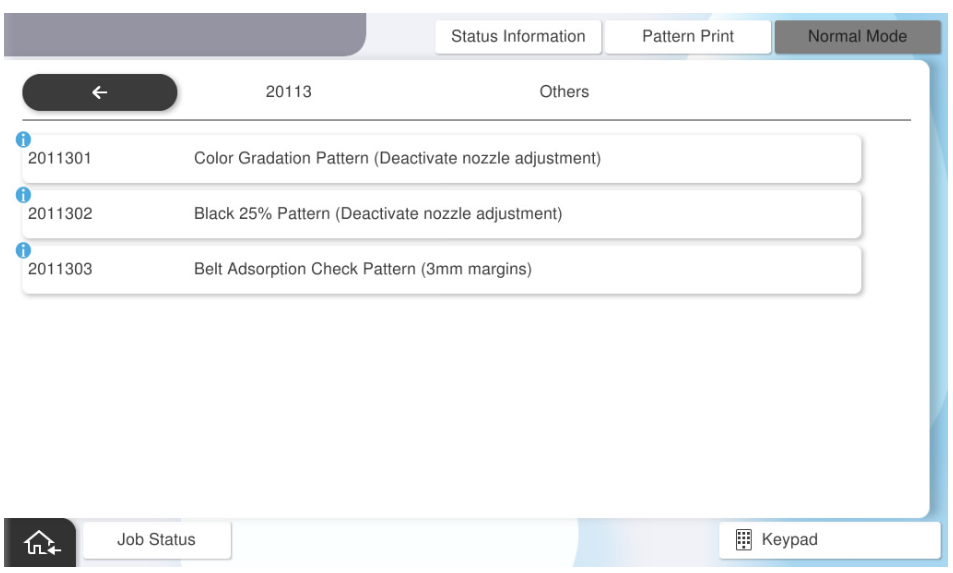

  4. Select the pattern menu to print.

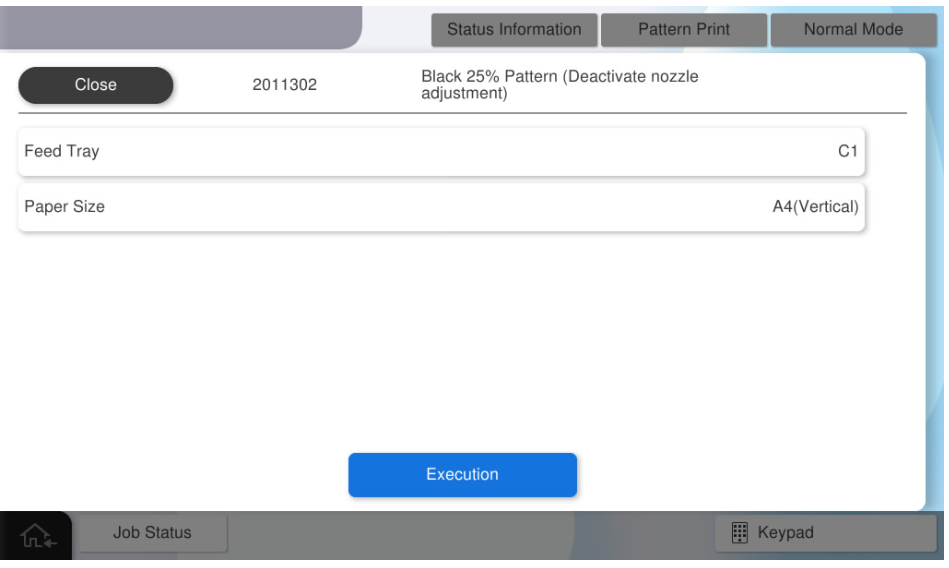

  5. Press each setting item button to make the print settings.


    The selectable items are as follows.

    Program No. Pattern Name Setting Items Choice
    2011202 Black 25% Pattern  (Deactivate nozzle adjustment) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
    Available Paper Sizes A4 (Vertical), Letter (Vertical)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution].
