301060203 1st Paper Eject Tray Full Stack Sensor Upper

Program No. Menu Name Judgment method Remarks
301060203 1st Paper Eject Tray Full Stack Sensor Upper Shield the sensor from light with paper, etc. TRUE: No detection
FALSE: Detection
Default：TRUE

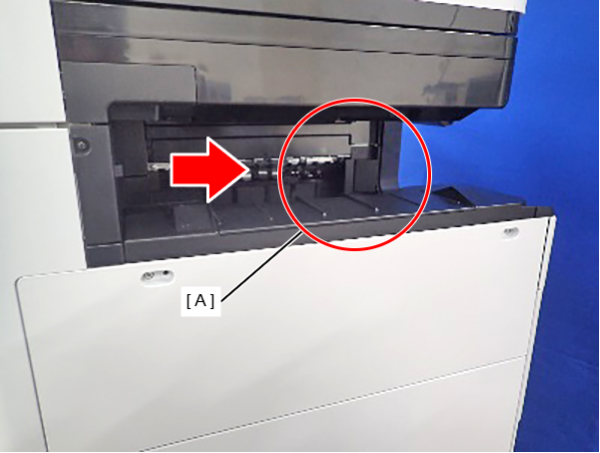

  1. Check the detection status of the sensor by holding the paper or your hand over the point (A) in the figure from the direction of the arrow.
