Paper Tray Pickup Roller

  1. Open the Paper Tray (A).
  2. While pushing the hook (A), remove the Paper Tray retard roller cover (B).
  3. While bending the hook (A), remove the Paper Tray retard roller (B) in the direction of the arrow.
  4. Press the button (A) and remove the Paper Tray pickup roller assy (B).

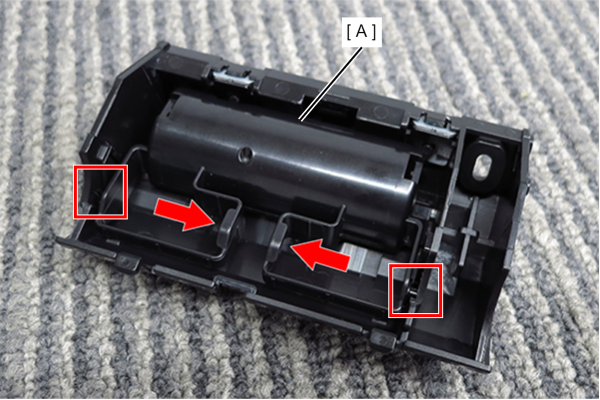

  5. Press the knob to pull out the two shafts of the Paper Tray pickup roller (A) from the holes in the cover and remove it.
