303010206 ADF Set Guide HP Sensor

Program No. Menu Name Judgment method Remarks
303010206 ADF Set Guide HP Sensor Check the sensor by turning the roller by hand. TRUE: Possible to set the Document
FALSE: Impossible to set the Document
Default：TRUE

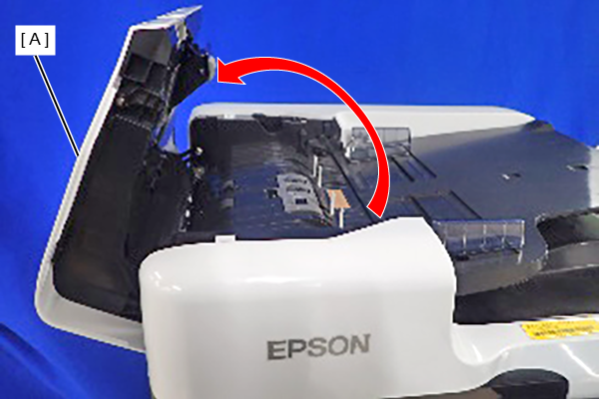

  1. Open the ADF Cover (A).

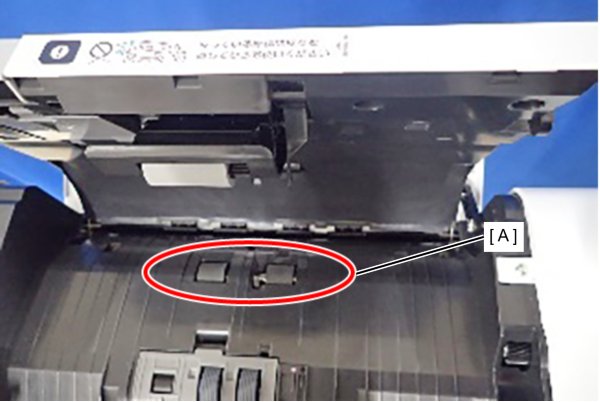

  2. Check the sensor detection status by rotating the rollers (A) shown below back and forth.

    Caution / 注意

    Be sure to clean the rollers after performing this work.
