ADF Pickup Roller - Before replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No.

Menu Name
1030301 Counter reset (ADF Pickup Roller)


  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [ADF / SCN] tab.

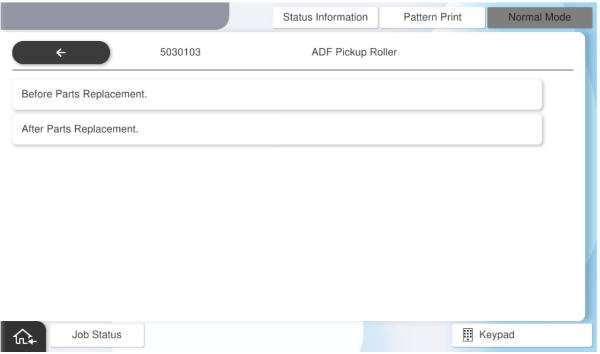

  4. Select [5030103 ADF Pickup Roller].
  5. Select [Before Parts Replacement]

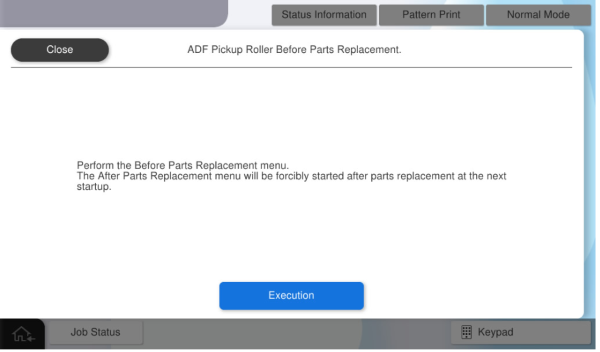

  6. Press [Execution].

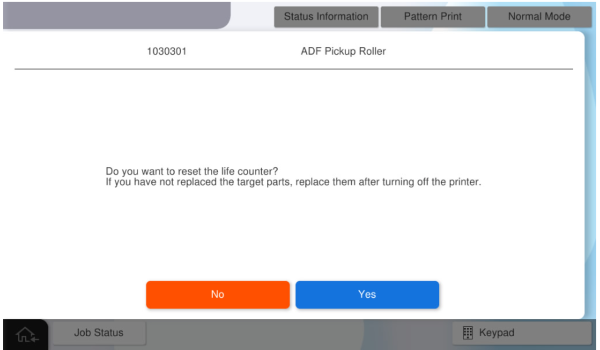

  7. Press [Yes] to reset the counter.

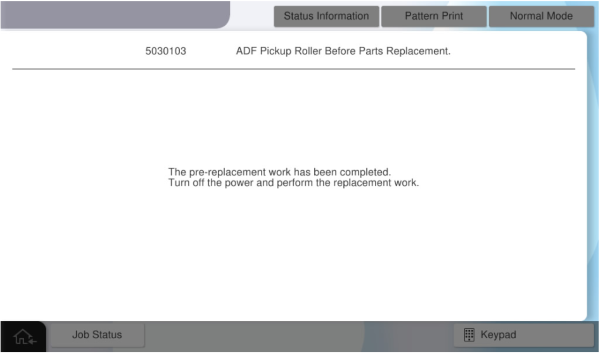

  8. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
