Maintenance Unit - Before replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No. Menu Name
1030109 Counter reset (Maintenance Unit)


  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [Main Unit] tab.
  4. Select [5010204 Maintenance Unit].

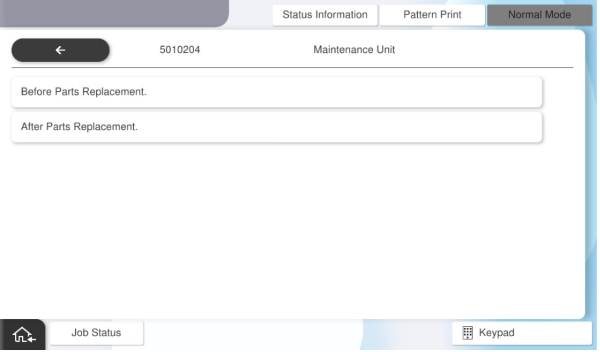

  5. Select [Before Parts Replacement]

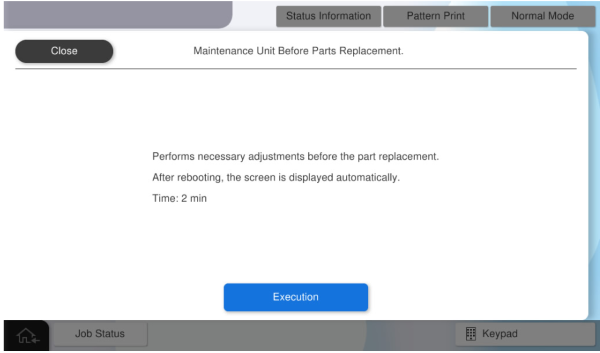

  6. Press [Execution].

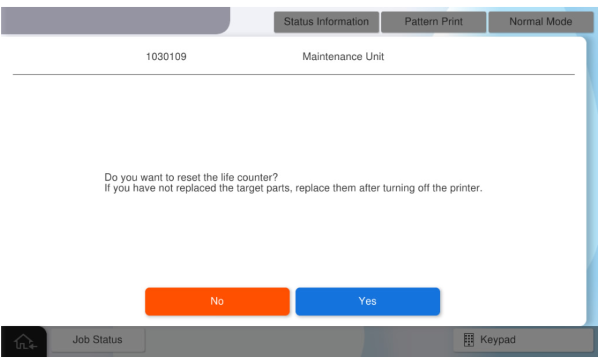

  7. Press [Yes] to reset the counter.

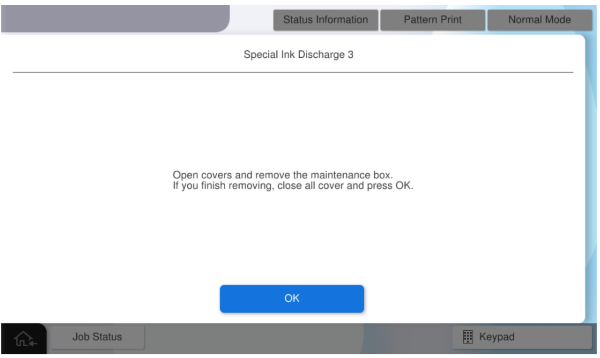

  8. Remove the Maintenance Box and press [OK].
  9. Turn Off the main unit.
    After replacement menu will start automatically at next startup.
