Post-Head Sensor

Head Rear Sensor
Position

  1. Pull the lever to open the Right Door Unit (A).
  2. Pull the lever to open the D3 Unit (A).
  3. Pull the lever (A) to open the belt unit (B).

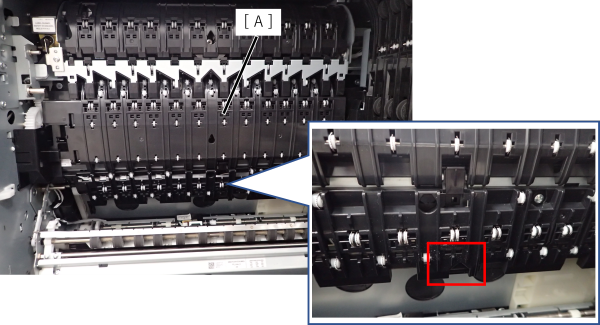

  4. Located inside the hole in the paper ejection path (A).

Cleaning method

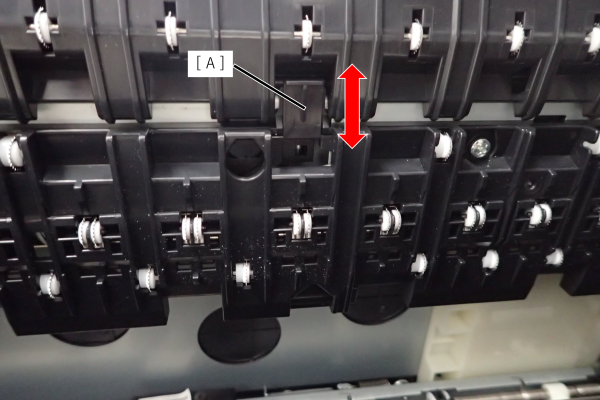

Slide the cleaning lever (A) up and down multiple times.
