20110 Special Gradation Pattern

Program No.

Pattern Name

Specifications

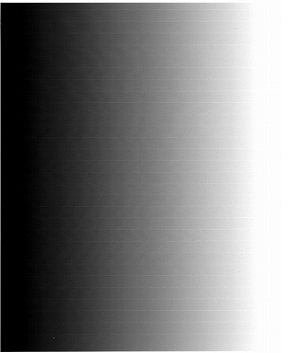

Pattern Image
(The arrow indicates the paper feed direction)

Target image quality defect

20110

Special Gradation Pattern

  • Dark lines

  • White lines

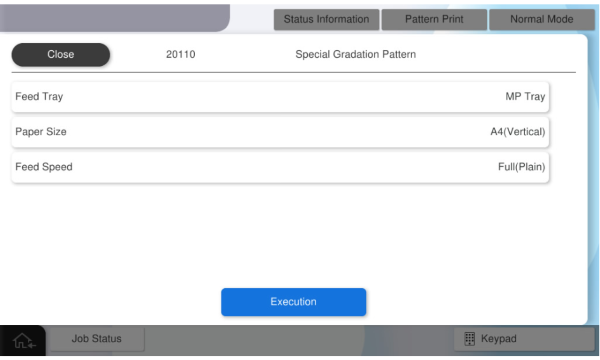

  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [Special Gradation Pattern].
  5. Press each setting item button to make the print settings.


    The selectable items are as follows.

    Program No. Pattern Name Setting Items Selection
    20110 Special Gradation Pattern Feed Tray Paper Tray
    Available Paper Sizes A4 (Vertical), Letter (Vertical)
    Printing speed Full speed(Plain paper),Low speed(Plain paper),Low speed( Matte paper)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution].
