7010303 Manually Release (Head unit DOWN)

Overview

Change the position of the head unit (lower) so that the head transport parts are not locked.

Check Point / チェックポイント
  • Execute this menu only when the head transport parts are locked. If executed in any other case, a fatal error may occur.
  • If the locked state cannot be cleared even after executing this menu, perform 7010302 Manually Release (Head unit UP).


Step
  1. Start the service support mode.
  2. Select [07 Installation Setting / Operation Check].
  3. Select [7010303 Manually Release (Head unit DOWN)].

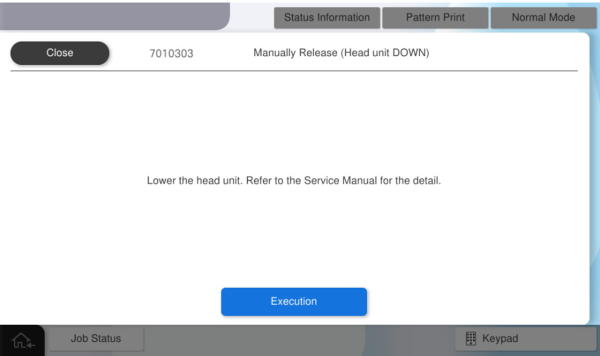

  4. Press [Execution].
  5. Press [OK].
  6. Turn off the power and try to remove the head transport parts.


    If the locked state cannot be cleared, perform 7010302 Manually Release (Head unit UP).

    Note / 補足
    • Head Transportation Parts


      Open the front cover, hold the handle of the transport parts, and pull it forward while rocking it left and right.
