C2 Pickup Roller Clutch

  1. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  2. Remove the two screws and slide the Left Cover Sub Upper (A) in the direction of the arrow to remove it.
    • : 3x10DW
  3. Remove the 4 screws and remove the right cover sub (A).
    • : 3x10DW
  4. Pull out the C1 cassette (A). (about 100mm)
  5. Pull out the C2 cassette (A). (about 100mm)
  6. Remove 2 screws and remove the Left Cover Lower (A) in the direction of the arrow.

    • : 3x10DW
  7. Remove 1 screw and slide the rear cover (A) in the direction of the arrow to remove it.
    • : 3x10DW
    Assembly / 組み立て

    Align the 5 hooks on the rear cover with the 5 holes on the main unit and attach it.
  8. Remove 1 screw and remove the Left Cover Sub Lower (A) in the direction of the arrow.

    • : 3x10DW
  9. Remove 4 screws.


    • : 4x8D
  10. Slightly lift the board box (A) to release the hook.
  11. Open the board box (A).


    Check Point / チェックポイント
    • By hooking the hook (A) of the board box to the hole in the main body, the position of the board box is stabilized, making it easier to work.
    • Do not close the circuit board box while hooking the hook (A) on the main unit. The frame may be deformed.
  12. Disconnect the cable (A) from the connector.
  13. Remove the C-ring [B] and remove the C1 Pickup Clutch [C].


    Assembly / 組み立て

    Align the concave portion of the C1 Pickup Clutch (C) with the protrusion on the main unit.

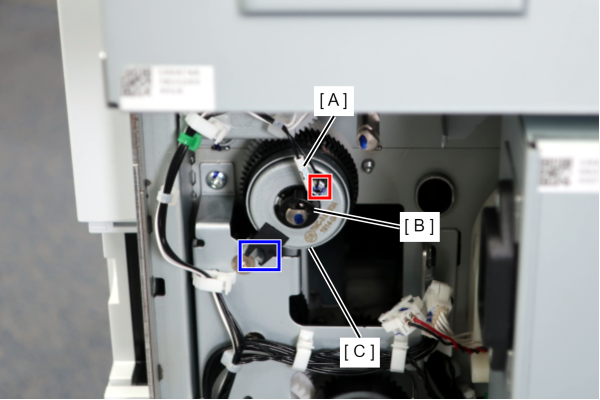

  14. Disconnect the cable (A) from the connector.
  15. Remove the C-ring (B) and remove the C2 Pickup Roller Clutch (C).


    Assembly / 組み立て

    Align the concave portion of the C2 Pickup Clutch (C) with the protrusion on the main unit.
