SDL Vertical Paper Transport Sensor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

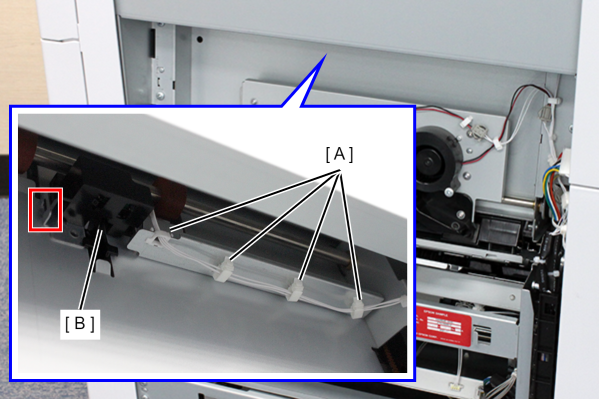

  2. Release the cables from the 4 clamps (A), release the hooks, and remove the SDL Vertical Paper Transport Sensor Assy (B).

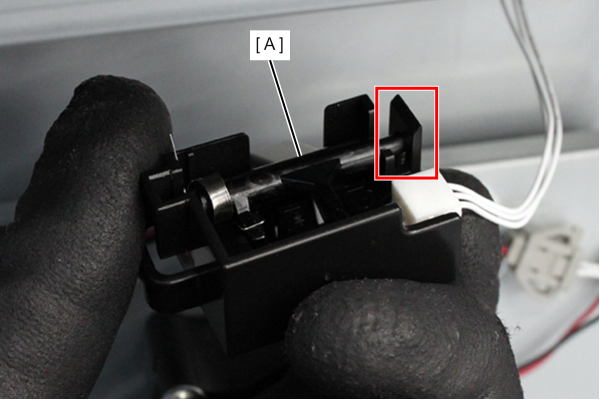

  3. Release the hook and remove the SDL Vertical Paper Transport Sensor Lever (A).

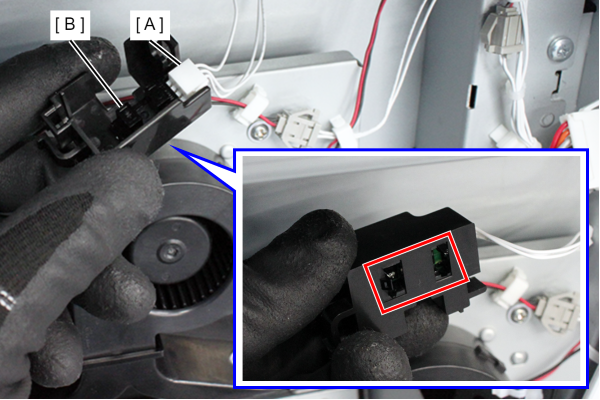

  4. Disconnect the cable from the connector (A), release the hook, and remove the SDL Vertical Paper Transport Sensor (B).
