SDL Alignment Plate HP Sensor Upper

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Refer to the following and remove the SDL Unit from the floor finisher.
    Saddle Unit Installation Procedure
    Caution / 注意
    • When disconnecting the Saddle Unit from the Floor Finisher Unit, the power of the Main Unit must be turned off.

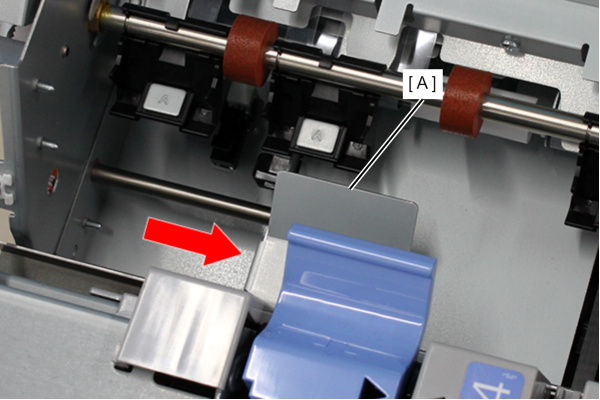

  3. Move the alignment plate (A) to the center.

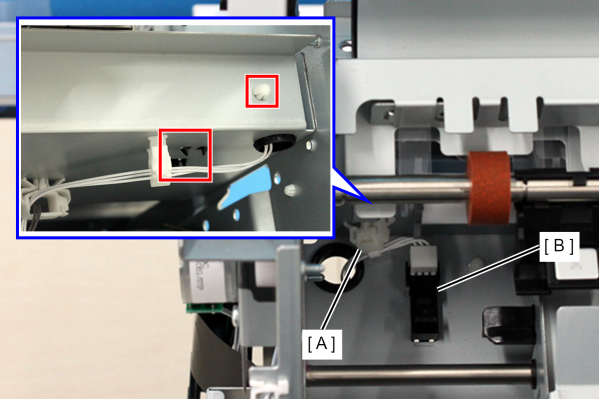

  4. Release the hook and remove the clamp (A), then release the hook and remove the SDL Alignment Plate HP Sensor Upper (B).

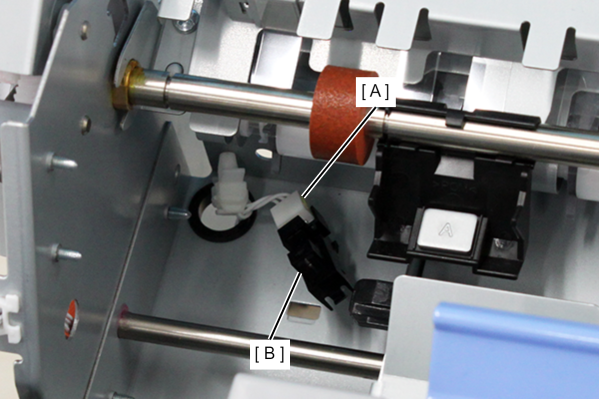

  5. Disconnect the cable from the connector (A) and remove the SDL Alignment Plate HP Sensor Upper (B).
