C3 Pickup Clutch

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.

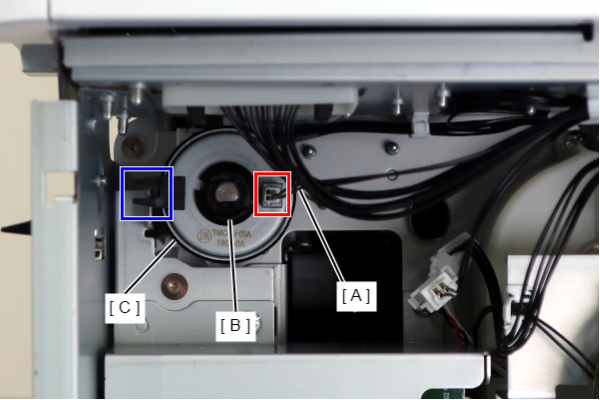

  4. Disconnect the cable (A) from the connector.
  5. Remove the C ring (B) and remove theC3 Pickup Clutch (C).


    Assembly / 組み立て

    Set the protruding position of the C3 Pickup Clutch (C) to the protrusion on the main unit.

    • : 3x10DW/P
