SDL Paper Eject Sensor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Refer to the following and remove the SDL Unit from the floor finisher.
    Saddle Unit Installation Procedure
    Caution / 注意
    • When disconnecting the Saddle Unit from the Floor Finisher Unit, the power of the Main Unit must be turned off.
  3. Remove 2 screws and remove the Stapler Unit Attachment Plate Rear (A).


    • : 4x8D

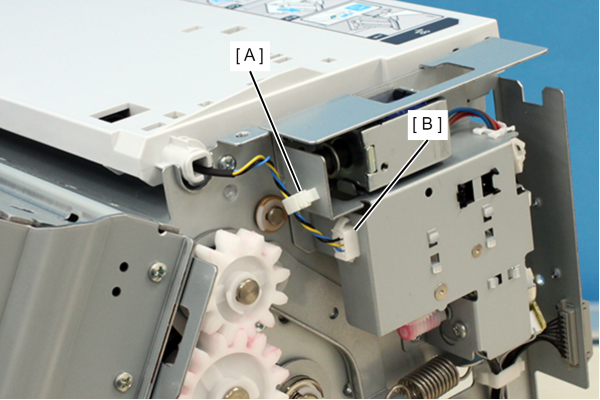

  4. Release the cable from the clamp (A) and remove from the connector (B).
  5. Open the V2 Cover (A).
  6. Remove the spring of the torsion spring (A) from the hole in the frame.
  7. Remove the V2 cover (A) by pulling off the shaft.

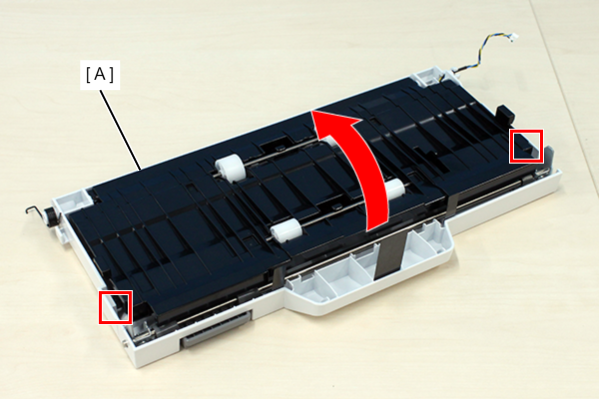

  8. Release the 2 hooks and open the V2 cover (A).

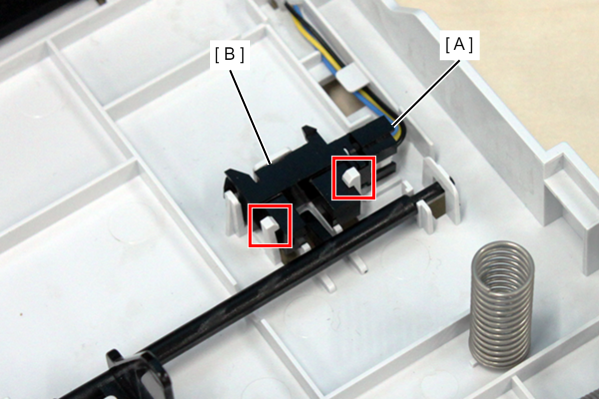

  9. Release the 2 hooks, remove the cable from the connector (A), and remove the SDL Paper Ejection Sensor (B).
