301030207 Head Front Sensor

Program No. Menu Name Judgment method Remarks
301030207 Head Front Sensor Shield the sensor from light with paper, etc. TRUE: No Detection
FALSE: Detection
Default：TRUE

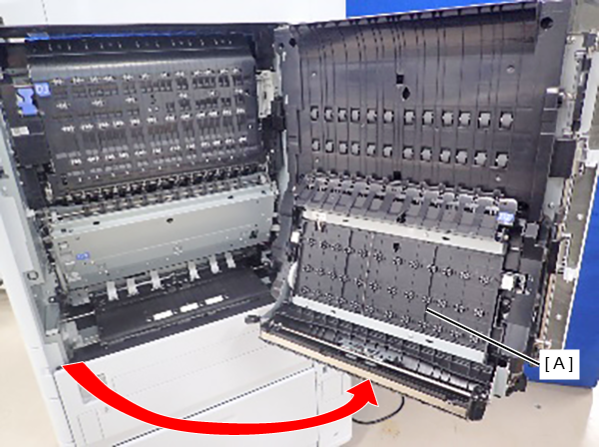

  1. Open the right door unit (A).

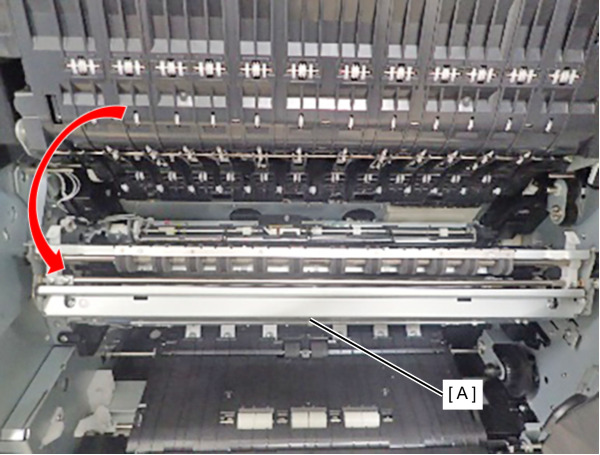

  2. Open the D4 jam release guide (A).

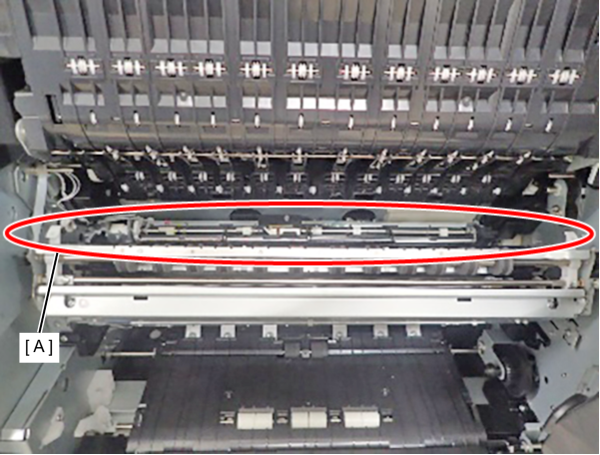

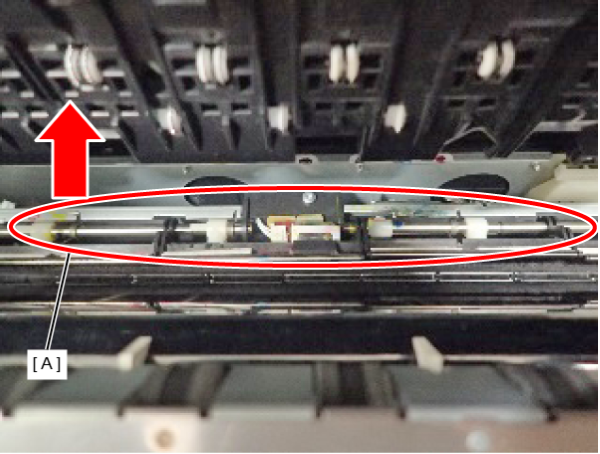

  3. Raise the lever (A) shown in the figure.

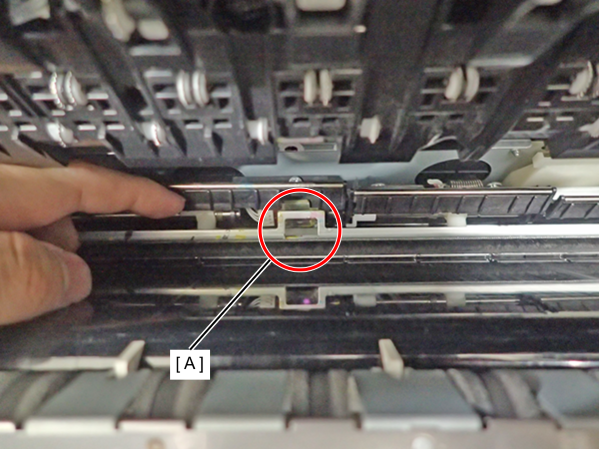

  4. Check the sensor detection status by holding a sheet of paper or your hand over the point (A) in the figure.
