FD Clutch

  1. Release the 2 dowels with a flathead screwdriver and remove the Front Cover (A).
  2. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  3. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW
  4. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.
  5. Release the hook and remove the Front Decorative Cover Lower (A) in the direction of the arrow.
  6. Remove 6 screws and remove the Front Right Cover (A).

    • : 3x10DW/P

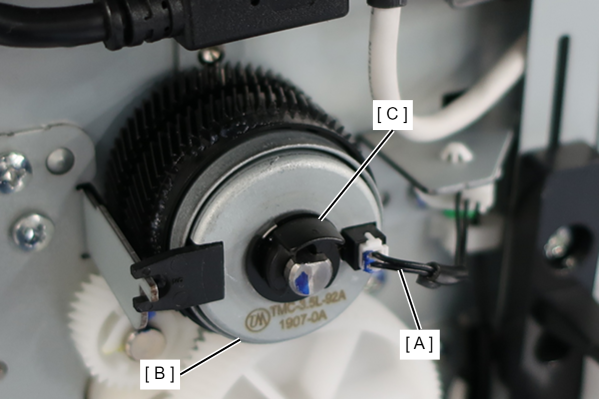

  7. Disconnect the cable (A) from the connector.
  8. Remove the C-ring [C] and remove the FD Clutch [B].


    Assembly / 組み立て

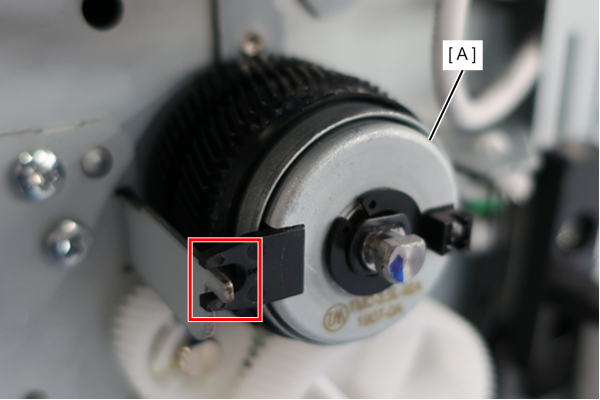

    Set the concave part of the FD clutch (A) to the protrusion on the main unit.
