Right Door Holder Lever
- Pull the lever to open the Right Door Unit (A).

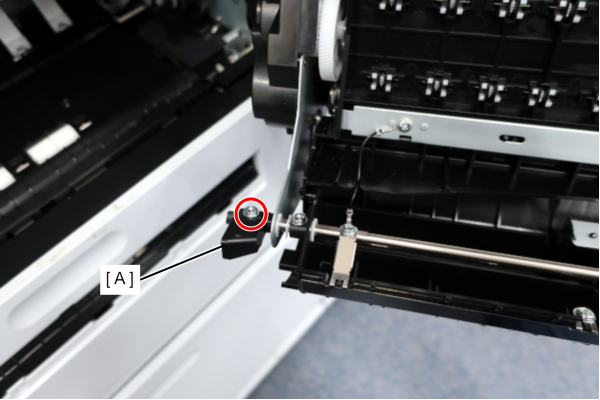

- Remove 1 screw and remove the Right Door Fulcrum Lever (A).
: 3x6DW/P
