303010203 ADF Document Length Sensor 1

Program No. Menu Name Judgment method Remarks
303010203 ADF Document Length Sensor 1 Shield the sensor from light with paper and check. TRUE: Detection
FALSE: No Detection
Default: FALSE

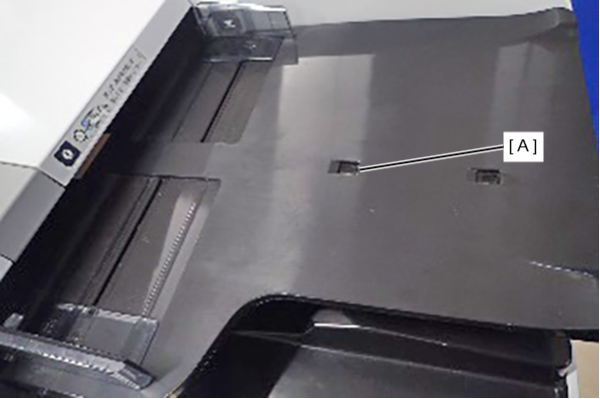

  1. Check the sensor detection status by holding a sheet of paper over the point (A) in the figure.
