20102 Ruled Line Pattern

Program No.

Pattern Name

Specifications

Pattern Image
(The arrow indicates the paper feed direction)

Target image quality defect

20102

Ruled Line Pattern
  • Pattern outline: Black and green lines (AM-M5500: Black and Gray) are printed evenly spaced apart, and a black box surrounding the lines is also printed.
  • Paper size: A4/Letter
  • Paper type: Plain paper

  • Number of prints: 1

  • Ruled line misalignment

  • Character distortion

  • Color shift

  • Incorrect margins
  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [Ruled Line Pattern].

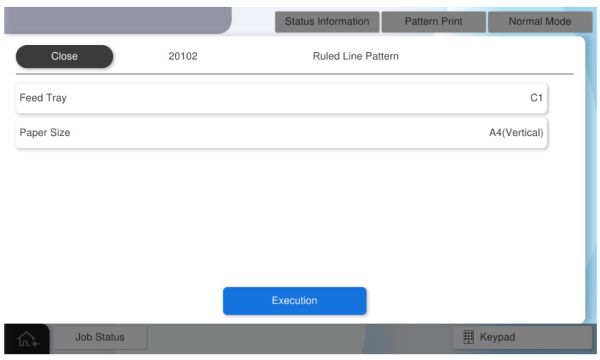

  5. Press each setting item button to make the print settings.


    The selectable items are as follows.

    Program No. Pattern Name Setting Items Choice
    20102 Ruled Line Pattern Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
    Available Paper Sizes A4 (Vertical), Letter (Vertical)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution].
