306050207 SDL Folding Blade HP Sensor

Program No. Menu Name Judgment method Remarks
306050207 SDL Folding Blade HP Sensor Execute [306050102 SDL Folding Blade Drive Motor] and check. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Remove the Rear Cover, Lower.

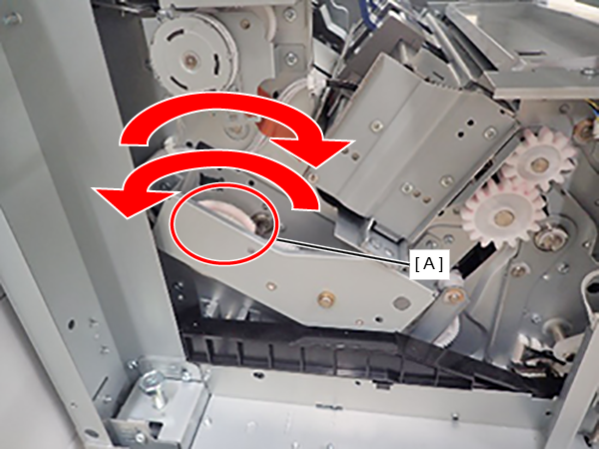

  2. Turn the gear of the SDL Folding Blade to check the sensor detection status.
