306020201 FIN Wait Drum Sensor

Program No. Menu Name Judgment method Remarks
306020201 FIN Wait Drum Sensor Check the sensor by passing a sheet of paper through the paper path of the Wait Drum. TRUE: Detection
FALSE: No Detection
Default: FALSE

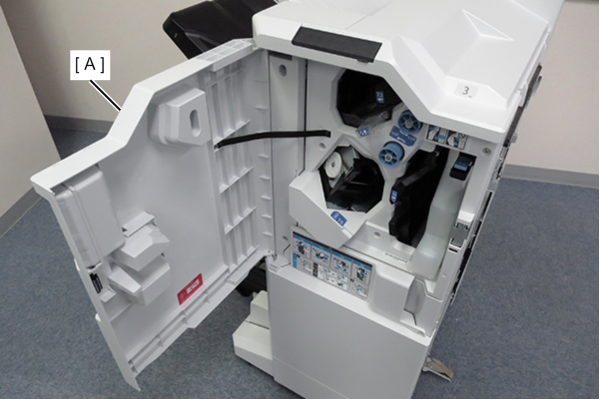

  1. Open the Front Cover (A).

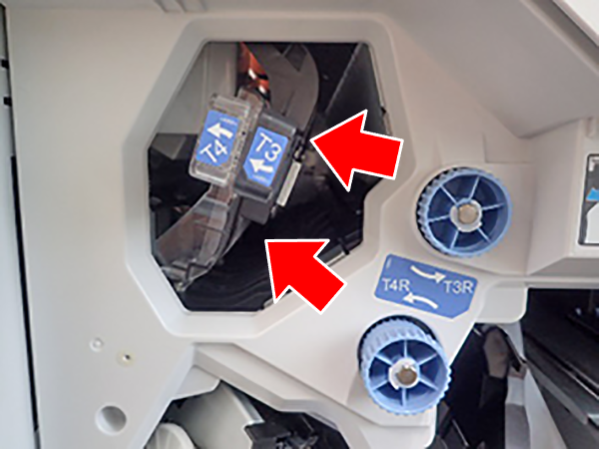

  2. Press the T3 and T4 levers to move them to the positions shown below.

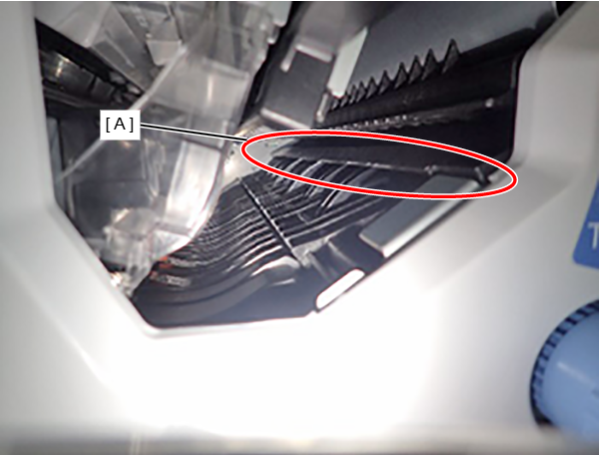

  3. Insert a sheet of paper into the gap (A).

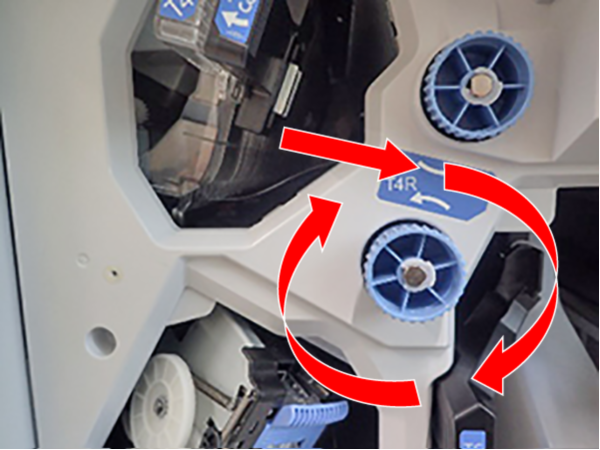

  4. Turn the T4R Wait Drum to pass the paper through the path indicated by the arrows in the figure to check the detection status of the sensor.
