Inner Finisher
Overview

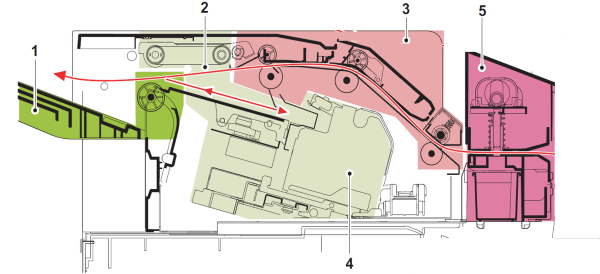

The inner finisher consists of the following five elements.
| 1 | Ejection Mechanism | A mechanism that ejects the stack of paper from the processing unit to the output tray. The output tray moves up and down according to the number of stacked sheets. |
|---|---|---|
| 2 | Processing Mechanism | A mechanism that performs intermediate processing such as stack ejection and staple ejection of sheets conveyed from the paper feed section. |
| 3 | Paper Transport Mechanism | A mechanism that pulls the paper transported from the main body into the inner finisher and transports the paper to the paper path ahead. |
| 4 | Staple Mechanism | A mechanism that staples a bundle of paper. |
| 5 | Punch Mechanism | A mechanism that performs punch processing. Incoming paper is skewed (improved skew) by two rollers in the paper carrying-in section, and punched one by one. |
