7040201 Three Folding Paper Size Setting

Overview: Switch the Tri-fold paper size (A4 or Letter).

Check Point / チェックポイント

This adjustment must be performed when Saddle Unit is installed.
  1. Start the service support mode.

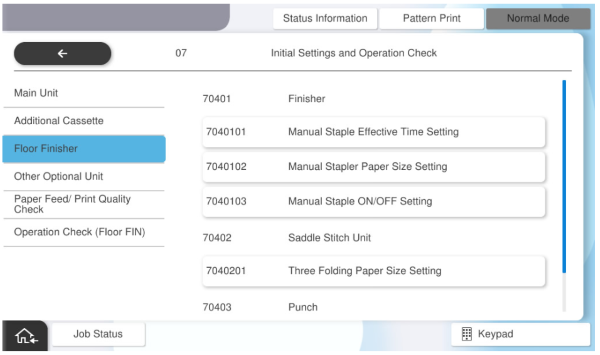

  2. Select [07 Installation Setting / Operation Check].
  3. Select [7040201 Three Folding Paper Size Setting].

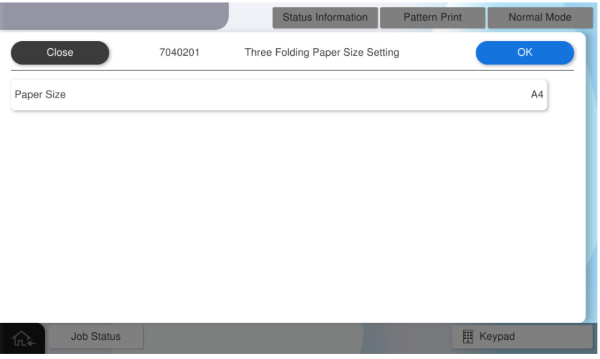

  4. Set the paper size, select the desired paper size (A4 or Letter), and press [OK].
