60209 ADF/SCN Individual Settings Reset
If there is no change in the adjustment result even after the adjustment is repeated, the adjustment value is reset because an abnormal value may be written in the adjustment value.
Resets all offset values in the following menus.
- 60205 ADF Manual Skew
- 60206 FB Scan Position Offset
- 60207 ADF Scan Position Offset
- 60208 ADF Scaling Offset
- Start the service support mode.
- Select [06 Individual Adjustment].
- Select the [ADF/SCN] tab.

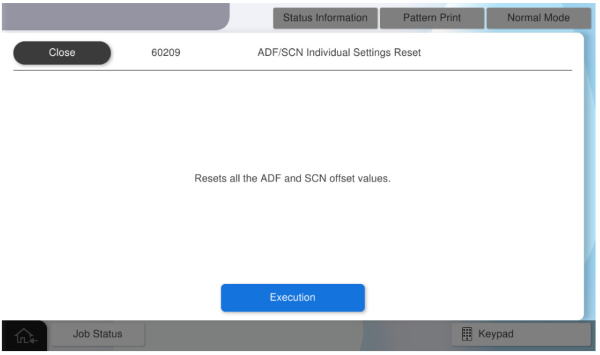

- Select [60209 ADF/SCN Individual Settings Reset].
- Press [Execution].
