After replacement work for C1 Pickup Roller / C1 Pickup Unit
- Turn the power ON.

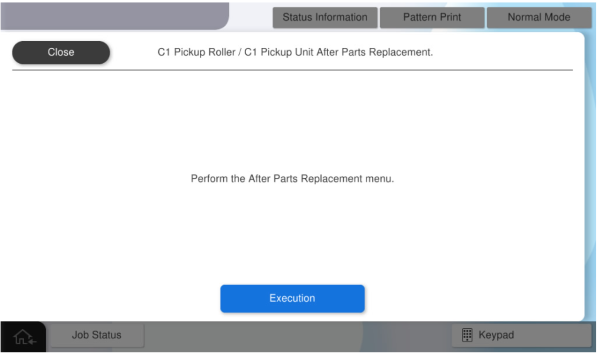

- Press [Execution].

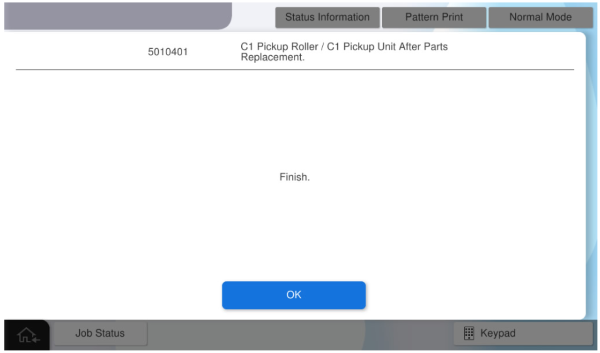

- Press [OK] to complete the menu.
