Selector Unit

  1. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  2. Pull out the C2 cassette (A). (about 100mm)
  3. Pull out the C1 cassette (A). (about 100mm)
  4. Remove 2 screws and remove the Left Cover Lower (A) in the direction of the arrow.

    • : 3x10DW
  5. Remove one hook each and remove two tube retainers (A).


    Check Point / チェックポイント

    Insert your fingers into the hooks of the tube retainer (A) from the left and right sides and lift it in the direction of the arrow to remove the hooks.
  6. Remove 2 screws and remove the selector joint (A).
    • : 3x14D

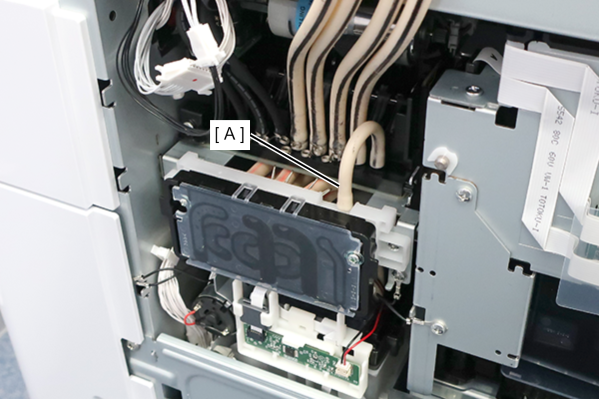

  7. Pull out the tube (A).

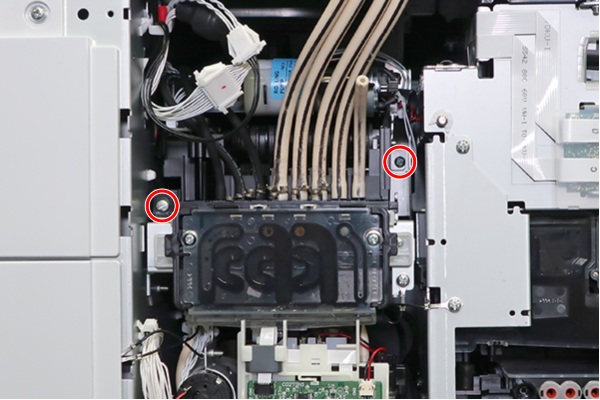

  8. Remove the 2 screws.
    • : 3x8D
    • : 3x8DW

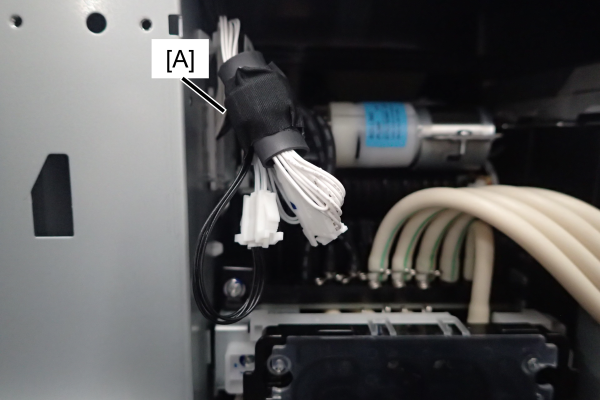

  9. Peel off the acetate tape (A) that bundles the relay connector.

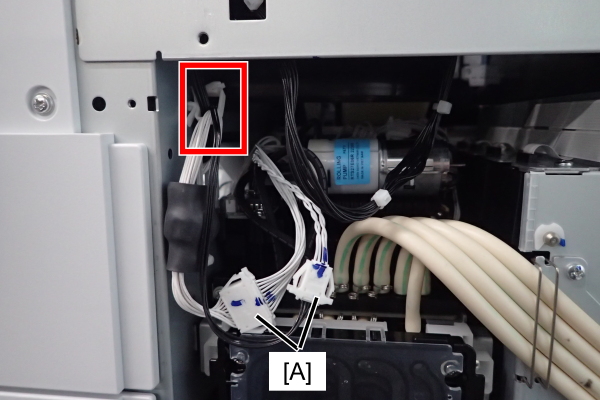

  10. Release the clamp and remove 2 cables (A) from the relay connector.

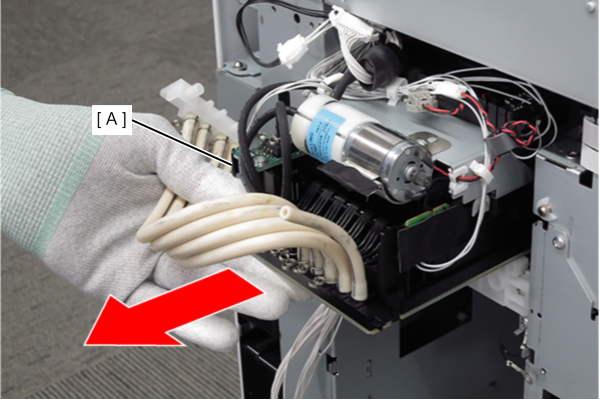

  11. Remove the selector unit (A).


    Assembly / 組み立て

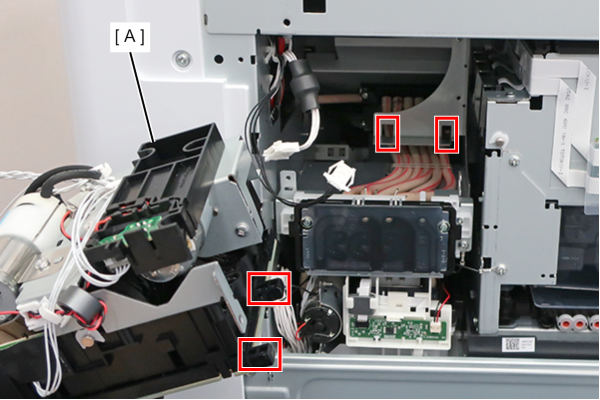

    • Insert the 2 tabs on the back of the selector unit (A) into the 2 holes on the body frame.

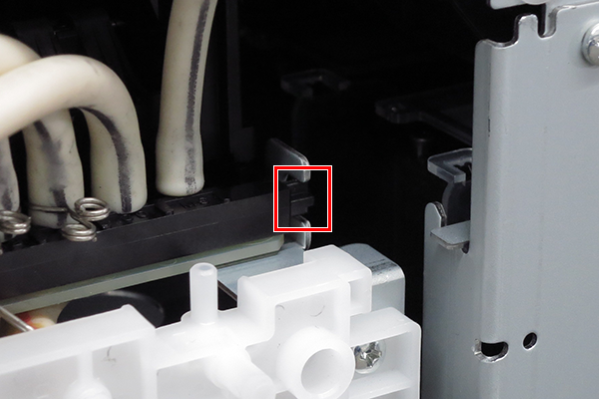

    • Set the tab of the selector unit in the recess of the frame.
