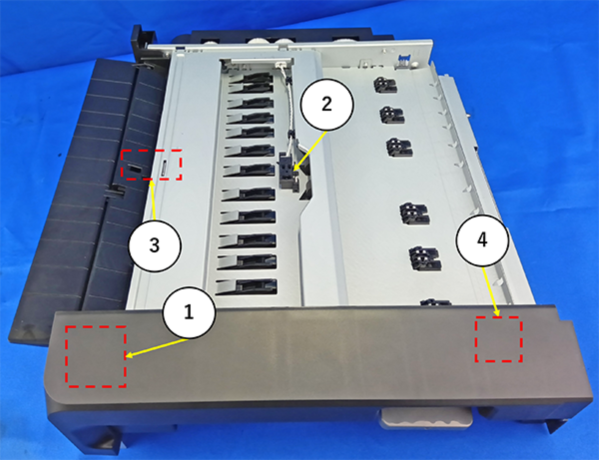

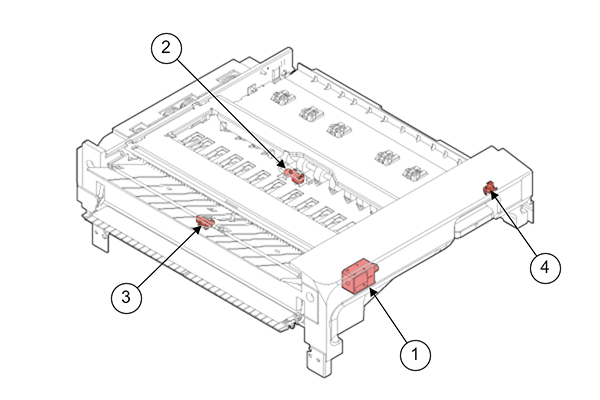

Floor Bridge Unit A
Solenoid
| No. | Name | Function | Type |
|---|---|---|---|
| 1 | BRG Path Switching Solenoid | Used for switching the paper ejection path. |
- |
Sensor
| No. | Name | Function | Type |
|---|---|---|---|
| 2 | BRG Paper Feed Sensor 1 | Used for paper jam remaining detection for the paper path. | Reflective photo interrupter |
| 3 | BRG Paper Path PF Sensor 2 | BRG Paper Path PF Sensor 2 | |
| 4 | BRG Path Cover Sensor | BRG Path Cover Sensor | Used to detect the open/closed state of the cover. |
