PF Drive Unit

  1. Remove the 4 screw.


    • : 4x10DC/P
  2. Remove the Back Cover while pulling out the cable from the hole in the Back Cover.



    important / 重要

    • Do not remove the Lift Wire parts except when there is trouble.
    • The wires for lifting up are holding the front and back of the lift cassette horizontal so you need to perform horizontal adjustment if they are removed.

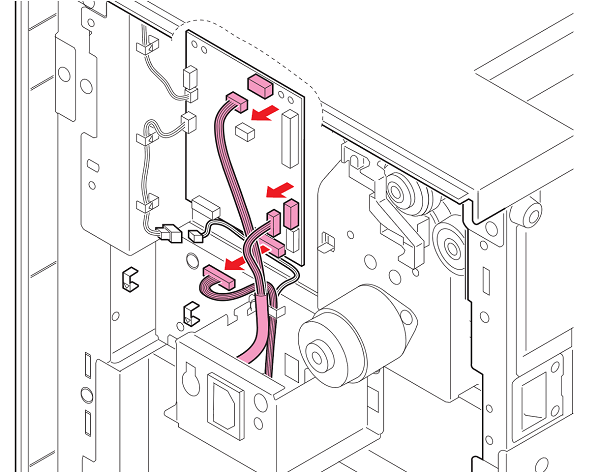

  3. Disconnect 3 connectors from the Control Board.

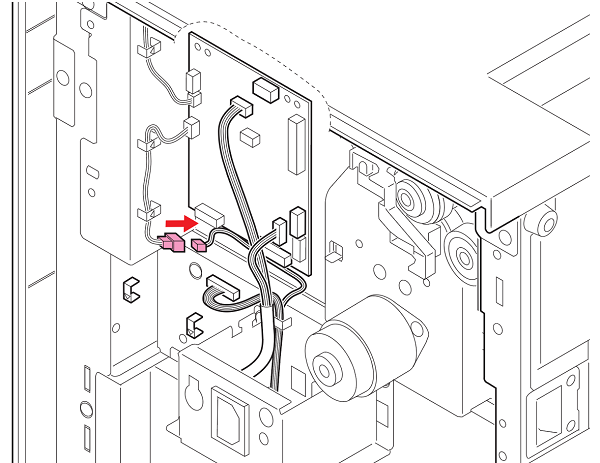

  4. Disconnect the relay connector.

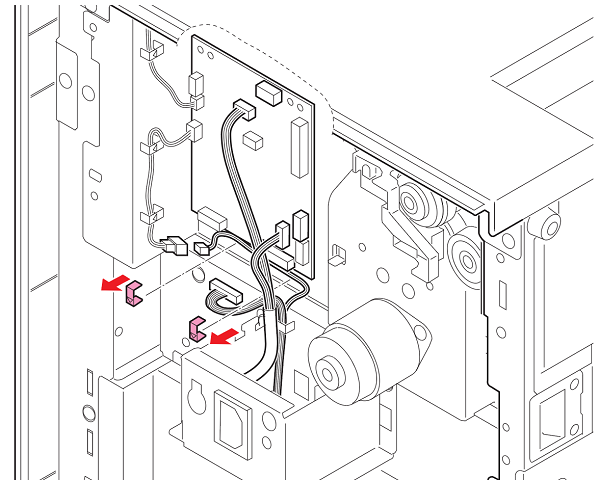

  5. Remove the Electric Wire Stoppers (x2), then release the cable.

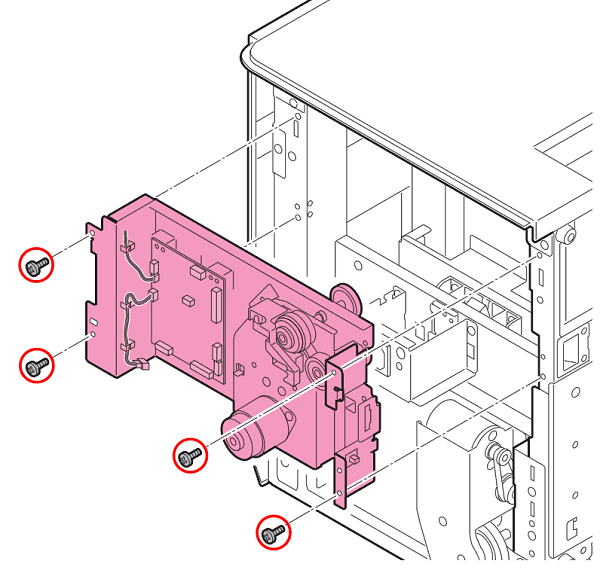

  6. Remove 4 screws.
    • : 3x8M/P

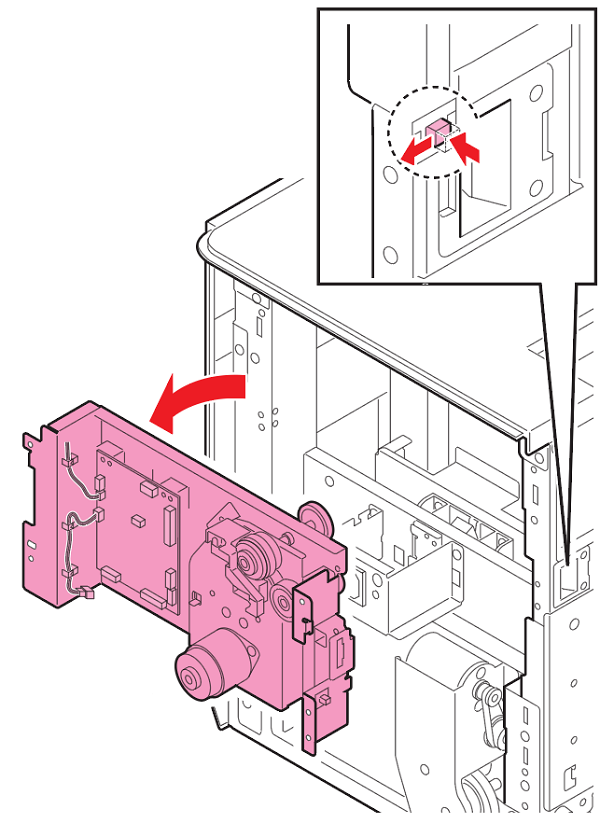

  7. Remove the PF Drive Unit while pressing the Switch Lever.
