306040207 PNC Punch Waste Tray Full Detection Sensor

Program No. Menu Name Judgment method Remarks
306040207 PNC Punch Waste Tray Full Detection Sensor Shield the sensor from light with paper, etc. TRUE: Full
FALSE: No Full
Default: FALSE
  1. Open the Front Cover (A).

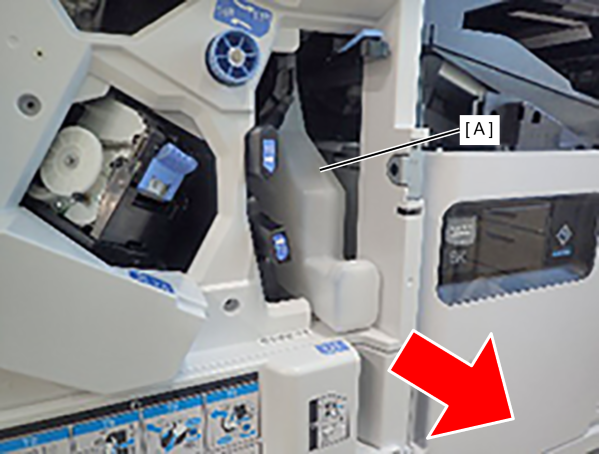

  2. Remove the PNC punch waste tray (A).

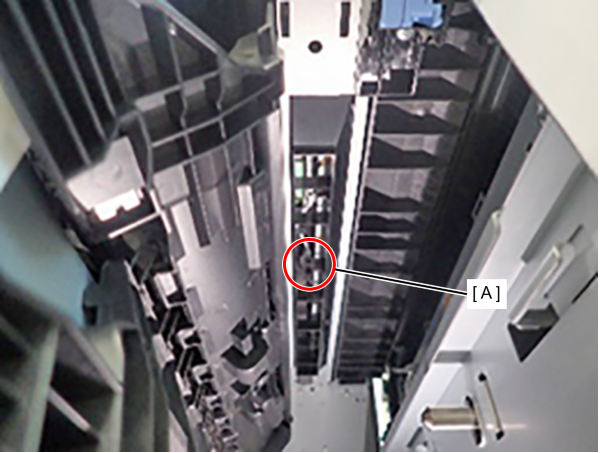

  3. Check the sensor detection status by holding a sheet of paper over the point (A) shown below.
