301060207 Paper Ejection Tray Rib Lower Limit Sensor

Program No. Menu Name Judgment method Remarks
301060206 Paper Ejection Tray Rib Upper Limit Sensor

Execute [301060103 Paper Ejection Tray Rib Lifting Motor] and check.

 TRUE: No Detection
FALSE: Detection
Default：TRUE
  1. Execute [301060103 Paper Ejection Tray Rib Lifting Motor] and check.

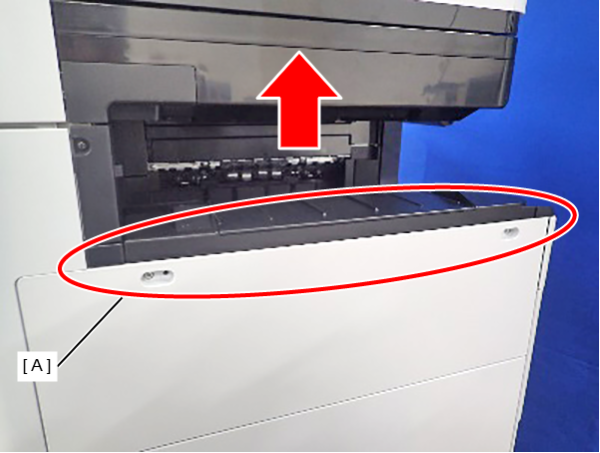

  2. While executing step 1, open the Right Door Unit when the Paper Ejection Tray Rib is raised to the top.
  3. Check the detection status of the sensor using [301060206 Paper Ejection Tray Rib Upper Limit Sensor].
