SDL Paper Transport Fan

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

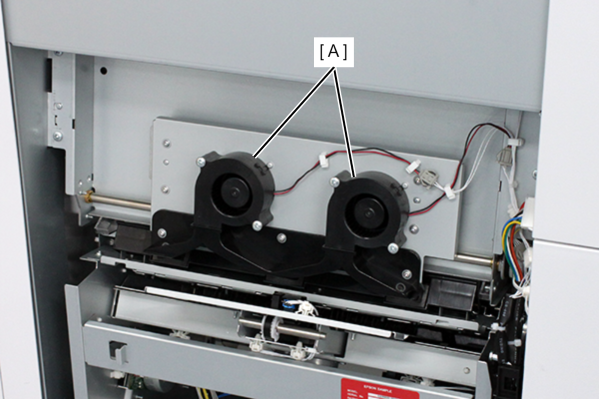

  2. Two SDL Paper Transport Fan (A) are installed. Both can be disassembled and assembled in the same procedure.

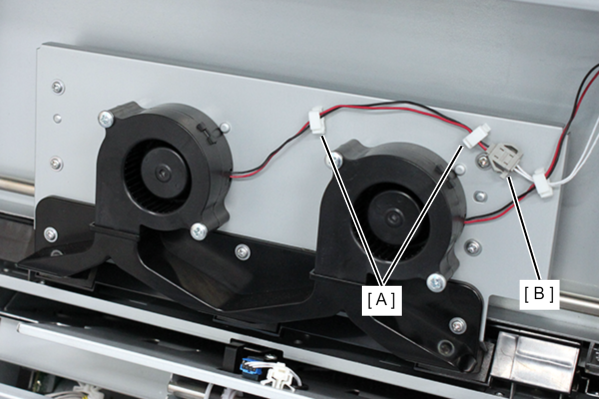

  3. Release the cable from the 2 clamps (A) and disconnect the cable from the relay connector (B).

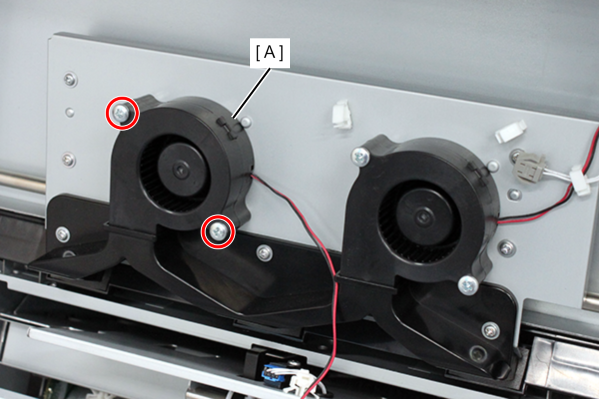

  4. Remove the 2 screws and remove the SDL Paper Transport Fan (A).

    • : 4x30D
