Additional Paper Feed Cover Sensor

  1. Open the additional cassette paper feed cover (A).
  2. Remove 1 screw and remove the connector cover (A).

    • : 3x8D

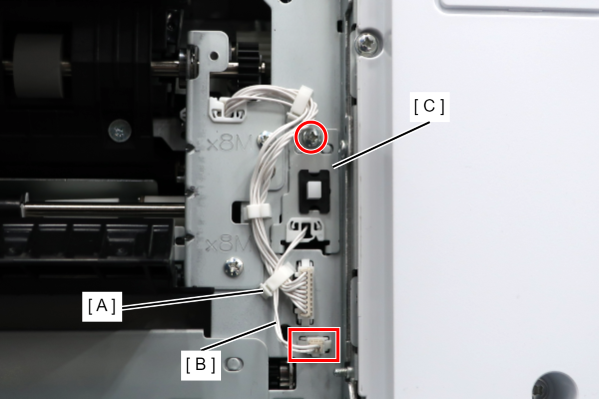

  3. Release the cable (B) from the clamp (A) and remove the cable (B) from the connector.
  4. Remove 1 screw and remove the Additional Paper Feed Cover Sensor Assy (C).
  5. Disconnect the cable from the connector.

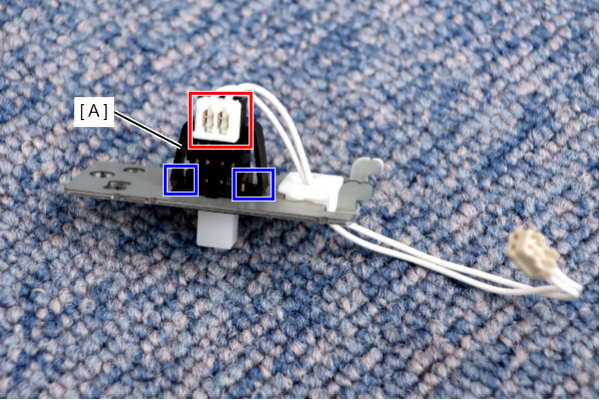

  6. Release the 2 hooks and remove the Additional Paper Feed Cover Sensor (A).

    • : 3x8D/P
