Paper Path, Right Door, Out Side

  1. Pull the lever to open the Right Door Unit (A).
  2. Remove 1 screw and remove the Right Door Fulcrum Lever (A).

    • : 3x6DW/P

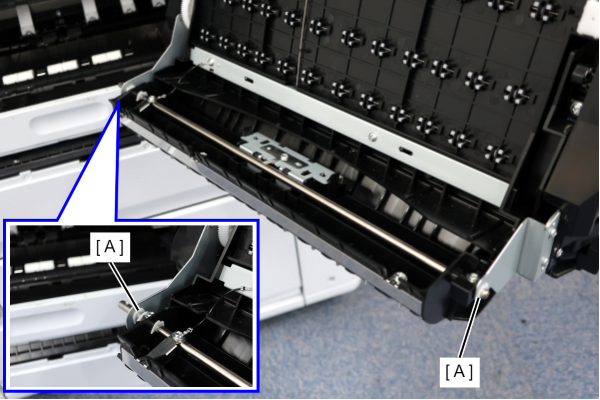

  3. Remove 2 E-rings (A).

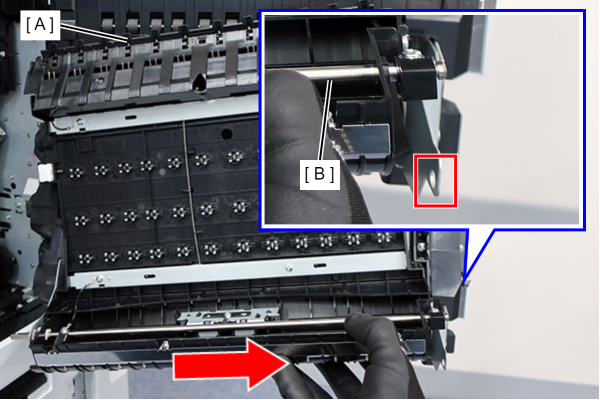

  4. Remove the Paper Path, Right Door, Outside (A) shaft (B) from the hole and remove in the direction of the arrow.
