301020211 C2 Paper Feed Sensor
| Program No. | Menu Name | Judgment method | Remarks |
|---|---|---|---|
| 301020211 | C2 Paper Feed Sensor | Shield the sensor from light with paper, etc. |
TRUE: Detection |

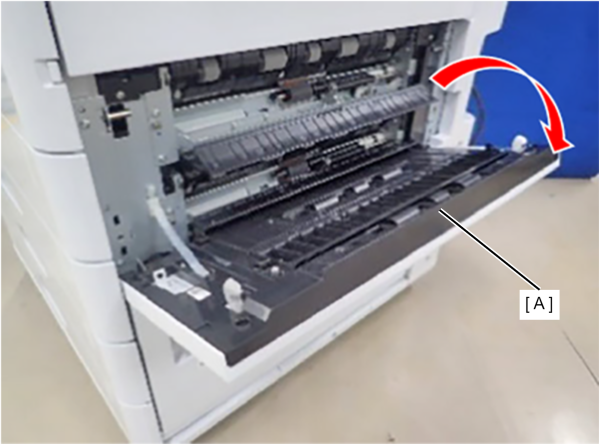

- Open the Main Unit Paper Feed Cover (A).

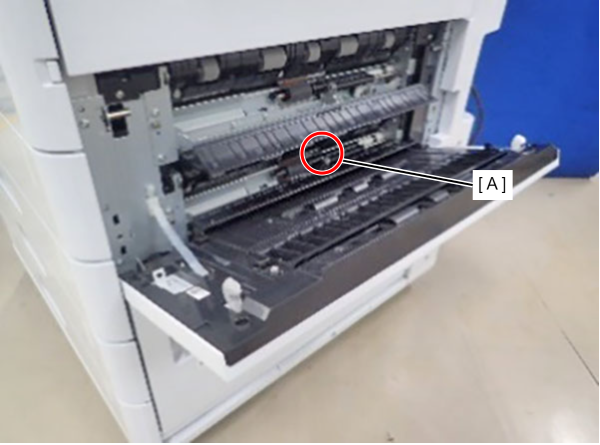

- Check the sensor detection status by holding a sheet of paper over the point (A) in the figure.
